The series 250 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.

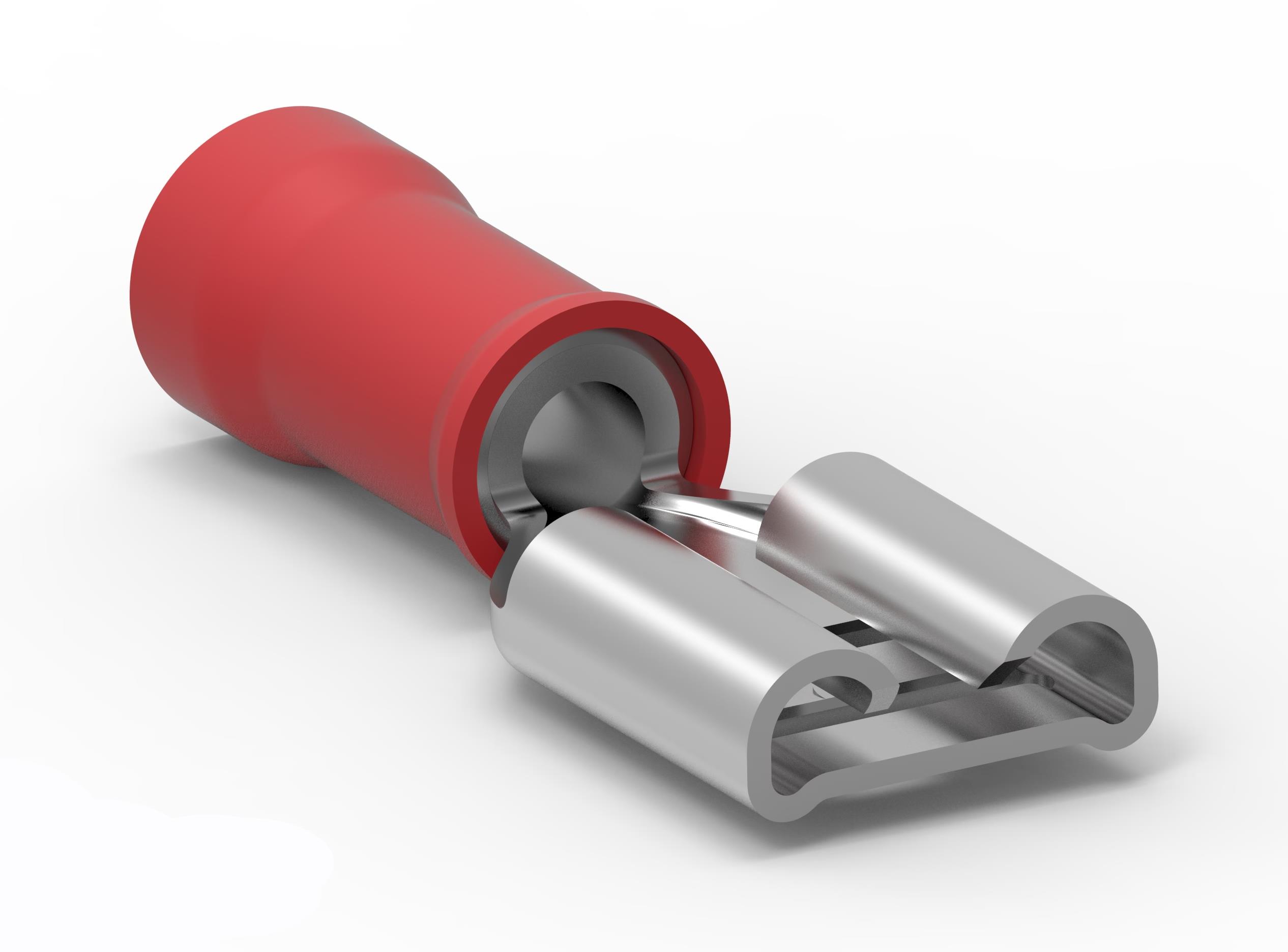

This PIDG quick disconnect receptacle (EDMO# 640903-1) has a straight connector, fits 22 – 18 AWG wire, and has a red insulation color.
Features
- Fits within confined spaces
- Low insertion force provides increased comfort
- Meets UL 310 & CSA C22.2 No. 153 requirements
Specifications
Length:
22.86 mm
Color:
red
Contact Material:
tin-plated brass
Insulation:
nylon
Mounting Angle:
straight
Mounting Style:
push in
Product Type:
quick disconnect terminals
Product Series:
250 Faston
Stud / Tab Size:
6.35 x 0.81 mm
Voltage Rating:
300V
Wire Gauge:
22 – 18 AWG
Unit of Measure: EACH
Supplier/Manufacturer SKU: 640903-1
Mil Spec, TSO, Certification:
HS Code: 8536.90.4000
HAZMAT:
UN#:
