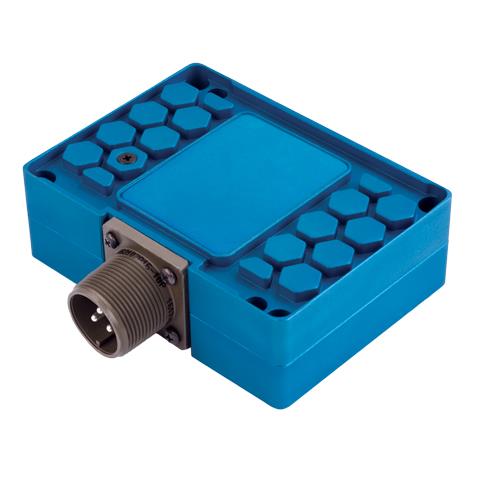

The TC240 Series DC-to-DC Converter produces 240 watts of power from the aircraft’s 28 VDC input. Featuring variable output voltage, the converter delivers a range of 5-18 VDC to power electronic equipment throughout the aircraft, including a variety of in-seat, cabin and cockpit power applications.
- Supplies 240 watts of 5 to 18-volt power to electronic equipment, including lighting and cabin accessories
- Lightweight — 0.7 lbs
- 240 watts output power
- 95% efficiency
- Input Voltage: 24 – 32 VDC
- Input Current: 10.0 A Nominal
- Output Voltage: 5 – 18 VDC adjustable
- Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
- Rated from –67°F to +158°F (-55°C to +70°C)
- FAA TSO-C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Mating Connector: MCI P/N 9018655 (included)
Unit of Measure: EACH
Supplier/Manufacturer SKU: 6430240-2
Mil Spec, TSO, Certification: FAA TSO-C71 & RTCA DO-160G
HS Code: 85044090
