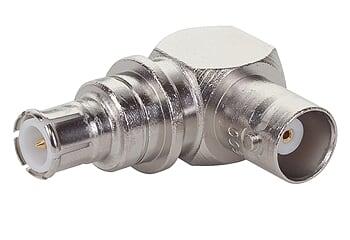

The DBA-600 BNC Tray Connector will save precious time during installation and also troubleshooting in place of the solder type tray connector. Designed to fit Bendix/King Silvercrown and other trays that currently use the solder type connector, the DBA-600 is made with high quality precision nickel body and a gold-plated center conductor.
Features
- BNC connector
- Right angle
- 50 ohms
- Brass body
- Gold-plated, beryllium copper center contact
- Teflon insulation material
Specifications
Voltage rating:
500 VRMS
Impedance:
50Ω
Dielectric withstanding voltage:
1,500 VRMS
Frequency range:
DC to 4GHz
Insulation resistance:
5,000 MegOhms min.
Temperature range:
-65ºC to 165ºC
Unit of Measure: EACH
Supplier/Manufacturer SKU: DBA-600
Mil Spec, TSO, Certification:
HS Code: 8535.90.8040
HAZMAT:
UN#:
