Home Lead-Thru Body, 10kv

Lead-Thru Body, 10kv

Out of stock
Product code: 14402

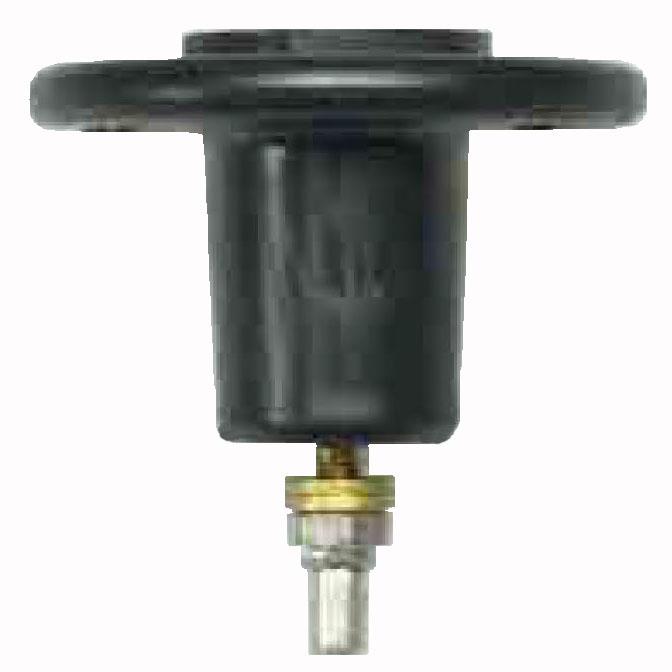

Mounted on the fuselage, the 14402 functions as a lead-through assembly to connect the long wire to the aircraft’s HF radio equipment.

$0.00

Mounted on the fuselage, the 14402 functions as a lead-through assembly to connect the long wire to the aircraft’s HF radio equipment.

Antenna Wire: 14379 TYPE I or 14407 TYPE II
Feed-thru Cap (pF): 2.0
Voltage Rating: 4.2 kV peak
RF Breakdown Voltage: 10kV



Unit of Measure: EACH
Supplier/Manufacturer SKU: 14402
Mil Spec, TSO, Certification: MS25054-1B
HS Code: 8529.90.4740
HAZMAT:
UN#:
