Home Strain Insulator, Chuck Jaw Pin

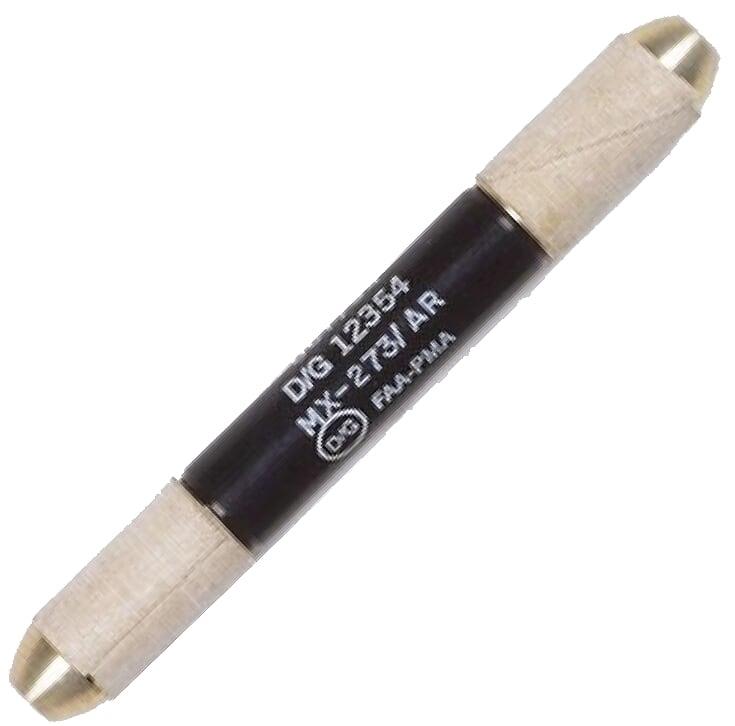

Strain Insulator, Chuck Jaw Pin

Out of stock
Product code: 12354

Strain Insulator for 14809 Antenna Wire

$0.00
RRP: $920.00

Voltage Breakdown (kV @ sea level):  7.5kV

Antenna Wire Attachment:  Chuck Jaws

Antenna Wire (P/N):  14809

Maximum Load kg / (lbs.):  362.90 (800)

Insulation to Space (kV):  180

Diameter cm / (in):  1.6 (.625)

Length cm / (in):  13.6 (5.37)



Unit of Measure: EACH
Supplier/Manufacturer SKU: 12354
Mil Spec, TSO, Certification:
HS Code: 8529.90.4700
HAZMAT:
UN#:
