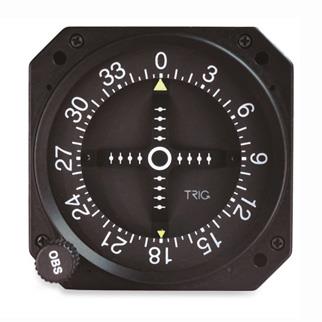

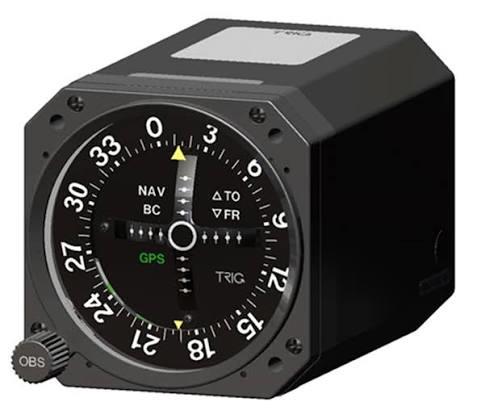

Trig’s TI106 is a 3″ Course Deviation Indicator, ideally matched for the TX56A and TX57A. Using the latest generation of indicator technology, solid state actuators provide smooth and dependable navigational indications. Use of LED technology for both flags and backlighting provides a superior display compared to older legacy indicators. The TI106 will support most existing Nav/Com equipment, making it a suitable replacement CDI across general aviation.
FEATURES
- FAA TSO-C34e certified CDI
- Solid state technology
- Superior LED lighting
- Optimised for use with Trig Nav/Com units
- Lightweight and simple to install
- Ideal as a retro-fit CDI option
COMPATIBLE TRIG PRODUCTS
The TI106 is the perfect CDI for the TX56A Nav /Com. It can also be used to replace legacy indicators that have failed, as it shares compatibility with established Nav/Com technology.
SUPPLY VOLTAGE
12-32 VDC
SPECIFICATIONS
| Specification | TI106 – CDI |
| Type | Certified |
| Certification | ETSo C34e, C36e, 2C40c TSO-C34e, C36e, C40c |
| Compliance | DO-160B/G |
| Supply voltage | 12-32 VDC |
| Typical consumption | 0.2Amps |
| Nominal Transmitter Power | N/A |
| Operating temperature | -55°C to + 70°C |
| Cooling requirement | N/A |
| Weight | 0.59kg |
| Dimensions (mm) | H 82.55mm x W 82.55mm x L 120.65mm |
| Front panel dimensions (mm) | 76mm |
| Dimensions (inches) | H 3.25″ x 3.25″ x 4.75″ |
| Front panel dimensions | 3″ |
WHAT'S IN THE BOX
- All Trig products come with a two year warranty, starting from the day of installation
- Installation instructions
- Mounting template
FREQUENTLY ASKED QUESTIONS
Does the TI106 come with the TX56A Nav/Com?
No, the two items are not sold as a bundle. Each product can be bought individually.
