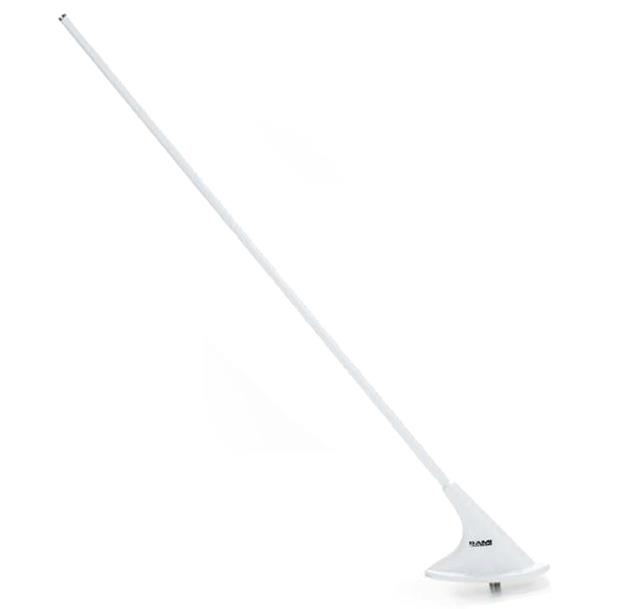

VHF Comm Antenna, Rod, BNC, 4-hole mount (CI-121)

In stock

Product code: AV-10

The AV-10 is a communications antenna designed for high-performance aircraft applications. This antenna is a direct replacement for the CI 121.

$305.00 $0.00

118-136MHz

It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base.

The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins.

The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.

It has a drag force of 2.70 lb @ 250 mph.

This antenna is a direct replacement for the CI 121.

Model	AV-10
Application	Airborne Communications
Frequency	118 – 137 MHz
Impedance	50 Ohms Nominal
VSWR	2.0:1 Maximum
Polarization	Vertical
Pattern	Omni-Directional
Connector	“BNC” Female
RF Power Capacity	30 Watts
Max Height	21.56″
Max Weight	8 oz.
FAA TSO	C37d, C38d
Available Colors	AV-10 Gloss White AV-10(-GB) Gloss Black AV-10(-B) CARC Black

Unit of Measure: EACH

Supplier/Manufacturer SKU: AV-10

Mil Spec, TSO, Certification:

HS Code: 85291000

HAZMAT:

UN#:
