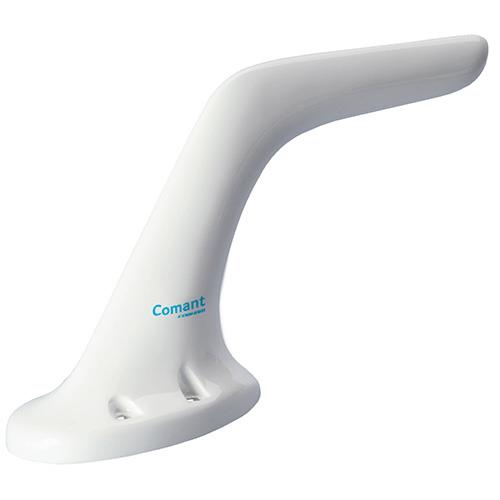

The CI 211 series antenna is a four-through-hole- and two internal-hole-mount style VHF communication bent blade antenna with a BNC port. This robust antenna is suitable for either top or bottom mounting on heavy fixed-wing single-engine and multi-engine aircraft, helicopters, and business jets.
This CI 211 series antenna (EDMO# CI-211-1-L) is a four-hole mounted VHF communication bent blade antenna with an extended 118–154 MHz frequency range and leading edge protection.
Features
- 118–154 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- 4-hole mounting
- High density polyurethane housing
- Polyurethane enamel finish
- BNC female connector
- Leading edge protection
Specifications
Weight:
1.6 lb
Height:
8.25 in
Frequency:
118–154 MHz
VSWR:
2.9:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50Ω
Power (RF):
30 W
Material:
High Density Polyurethane
Finish:
Glossy White
Connector:
BNC Female
Temperature:
-55ºC to 85ºC
Mounting Configuration:
4 Hole
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
C21104 Cork Neoprene
