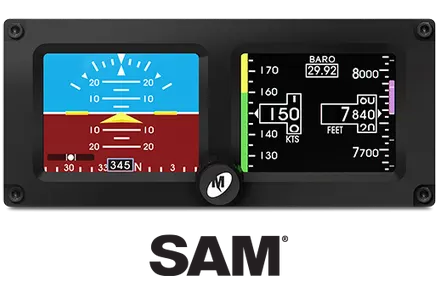

SAM® is the first — and only — digital standby to provide you with attitude, altitude, airspeed, slip, vertical trend and heading information in a flexible 2-inch format.

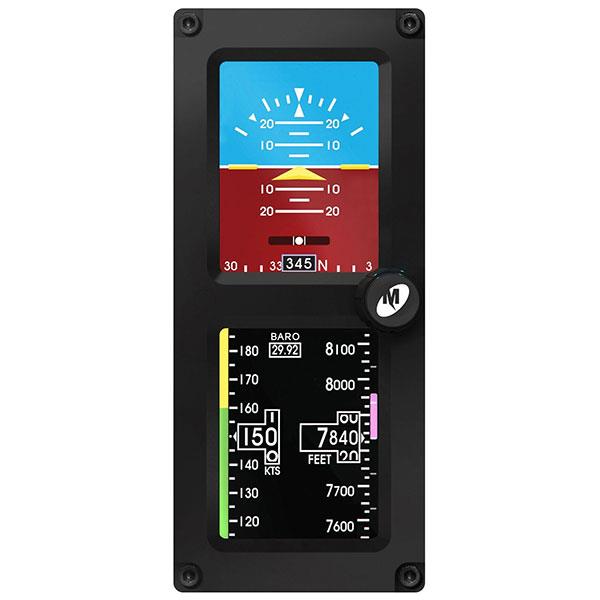

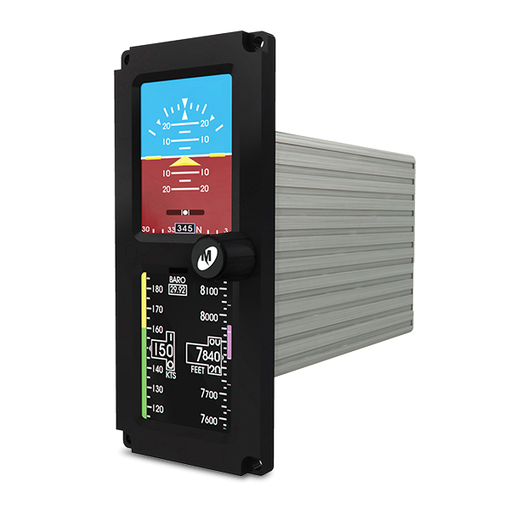

The MD302 Standby Altitude Module or SAM™ features a unique two-screen display that provides attitude, altitude, airspeed, slip, vertical trend, and heading information to the pilot during normal or standby operation in the event of primary instrument failure. This self-contained, solid-state instrument features a selectable orientation, horizontal or vertical, which allows flexible cockpit design and installation. The MD302 is also equipped with a rechargeable Nanophosphate® lithium-ion battery that provides up to one hour of emergency operation when fully charged.
Features
|
Model Number |
MD302 |
|
|
Power Input |
10-32 VDC; 6W nominal, 40W max |
|
|
Output |
ARINC 429 (high or low speed, see manual for specific labels) |
|
|
Operating Range |
Attitude |
300° per second pitch, roll and yaw (max) |
|
|
Altitude |
-1,500 to +55,000 ft (-457 to 16,764 m) |
|
|
Airspeed |
20 to 500 knots (23 to 575 mph) (37 to 926 kph) |
|
Vertical Trend |
6–second time frame |
|
|
Heading |
Within ± 2° up to 55°N or 45°S |
|
|
Units of Measure |
Altitude |
Feet or meters |
|
|
Barometric Setting |
Inches of mercury, millibars |
|
|
Airspeed |
Knots, miles per hour or kilometers per hour |
|
Panel Tilt |
Configurable |
-90° to +90° pitch |
|
Lighting |
5, 14 and 28 VDC external input or internal photocell |
|
|
|
Programmable dimming curve |
|
|
Pilot Interface |
16-detent, push and turn knob |
|
|
Dimensions |
5.50” W x 2.37” H x 5.17” D |
|
|
Weight |
1.6 lbs (0.73 kg) |
|
|
Battery |
Battery |
Rechargeable, field-replaceable, internal battery |
|
|
Technology |
NanoPhosphate® lithium-ion or nickel metal hydride |
|
|
Run Time |
60 minutes minimum when fully charged and properly maintained |
|
Mounting |
Front panel mounted |
|
|
Mating Connectors |
Mid-Continent P/N 9017646 kit contains custom DB15 connector with configuration module, pitot and static connectors |
|
|
Certification |
FAA/EASA/ANAC TSO certified to C2d, C3e, C4c, C6e, C10b, C106, C113a, C179a |
|
|
|
RTCA DO-178B and DO-254 Design Assurance Level (DAL) A |
|
|
|
RTCA DO-160 and RTCA DO-311 qualified |
|
