Home Lead-Thru Insulator, 10Deg

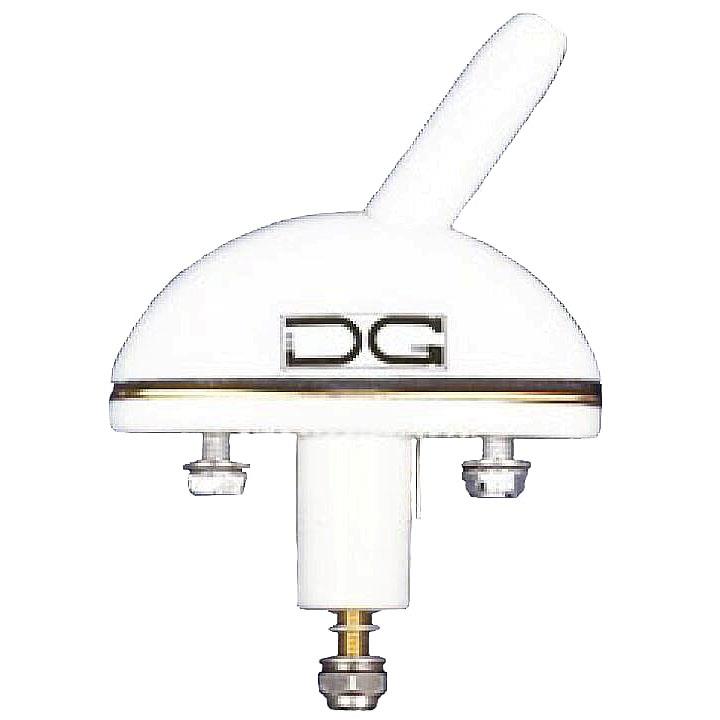

Lead-Thru Insulator, 10Deg

In stock
Product code: 25ARM300-20-10

Mounted on the fuselage, the 25ARM300-20A-30 functions as a lead-through assembly to connect the long wire to the aircraft’s HF radio equipment.

$458.00 $0.00

Mounted on the fuselage, the 25ARM300-20A-30 functions as a lead-through assembly to connect the long wire to the aircraft’s HF radio equipment.

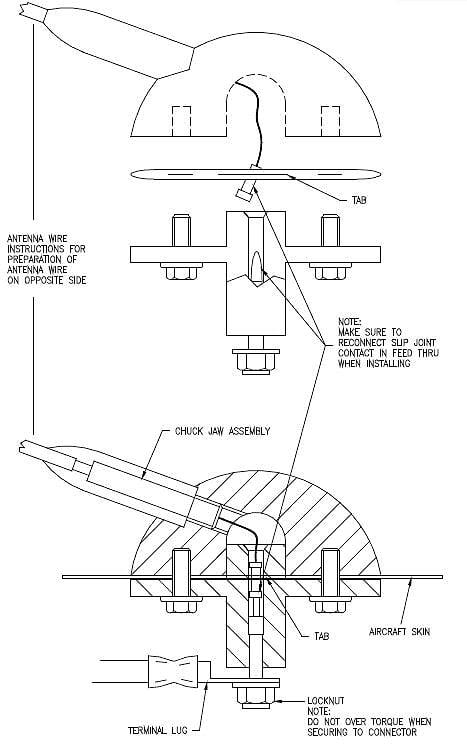

This unit uses a chuck jaw assembly.

  • BNC Connector UG 1098/U
  • Antenna Wire: 14379 TYPE I or 14407 TYPE II
  • Voltage Rating: 4.2 kV peak

Lead-thru insulators without the letters E, A or D in the part number have a feed thru hole to feed the antenna wire through the cap and stud into the aircraft where the antenna wire is wrapped around the stud and secured.

Unit of Measure: EACH
Supplier/Manufacturer SKU: 25ARM300-20-10
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
