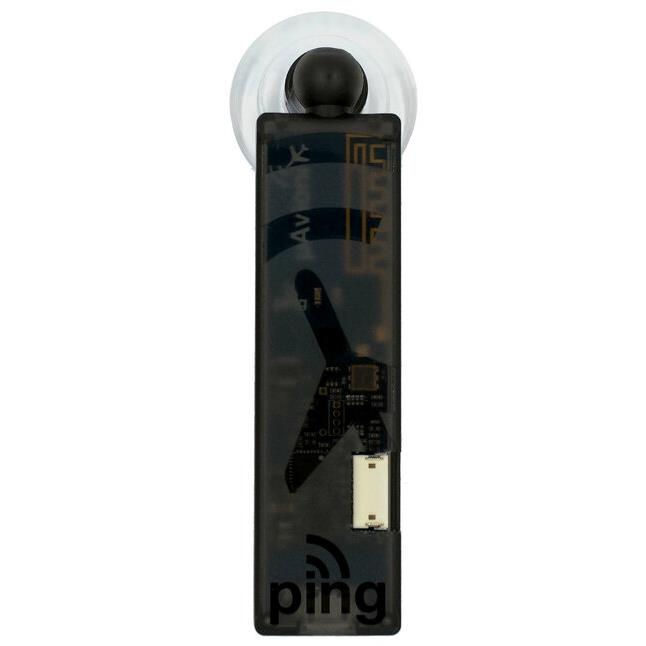

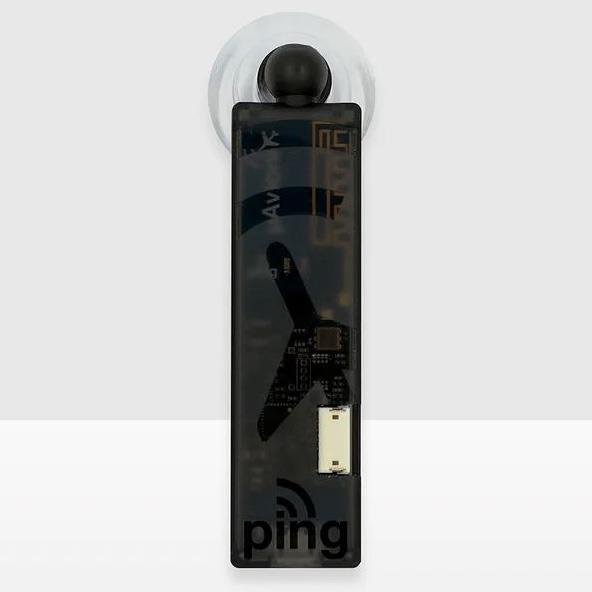

PingUSB ADS-B Traffic Receiver, Dual-Band

In stock
Product code: UAX-90004-02

pingUSB is the world’s smallest, lightest, and most affordable USB dual-band ADS-B receiver.

$0.00

pingUSB is the world’s smallest, lightest and most affordable USB dual-band ADS-B receiver.  pingUSB provides high quality tracking data for use with software such as Virtual Radar Server and services including ADS-B Exchange.  Receiving and tracking ADS-B aircraft is now as simple as connecting a flash drive.

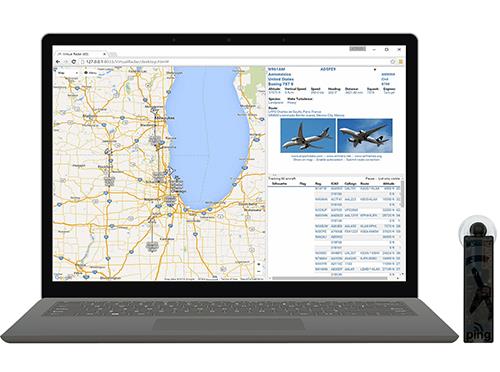

pingUSB is a USB interface version of our pingRX, an ADS-B receiver capable of detecting ADS-B equipped aircraft transmitting on both 1090 MHz and 978 MHz.  pingUSB easily integrates with Virtual Radar Server allowing identification and visualization of aircraft in realtime.  Low power consumption and a micro form factor make it ideal for almost any application.  Help support a larger community online by submitting your local pingUSB traffic to ADS-B Exchange.

Included in the box:

  • pingUSB ADS-B receiver
  • USB cable
  • 2 Suction Cups
  • Quick Start Guide

pingUSB does not receive or process FIS-B weather data.

Specification Value
Input Voltage / Power 4-6V / 150mA
Size 34x19x8mm
Weight 5 grams
Receive

MTL 1090MHz
Dynamic Range

-84dBm
-81 to 0dBm
MTL 978MHz
Dynamic Range
-93dBm
-90 to -3dBm
Interface MavLINK Serial 57600bps
Unit of Measure: EACH
Supplier/Manufacturer SKU: UAX-90004-02
Mil Spec, TSO, Certification:
HS Code: 9014.20.8040
