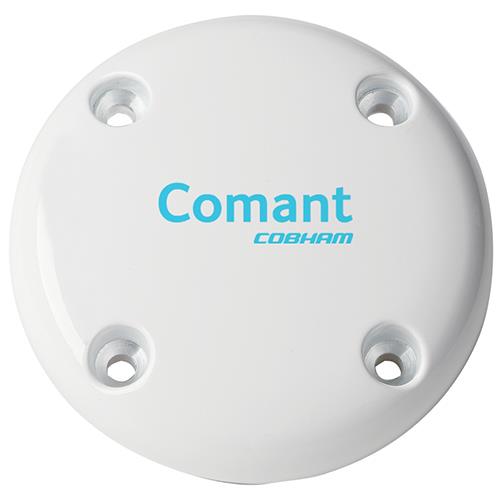

The CI 408-20 antenna four-through-hole-mount style non-WAAS GPS round antenna with a TNC port. This antenna is GPS C144 certified for class 1 LNAV approaches (lateral navigation only) and is designed to be used with 27 dB gain GPS panel mount systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- Covers the 1575.42 MHz non-WAAS GPS frequency
- Nominal 27 dB Gain
- RHCP polarization
- Hemispherical radiation pattern
- Stand-alone antenna
- TNC female connector
- Not compatible with most GPS handheld receiver systems
Specifications
Weight:
0.45 lb
Frequency:
1575.42 MHz
VSWR:
1.5:1
Polarization:
RHCP
Radiation Pattern:
Hemispherical
Impedance:
50 Ω
Power Handling:
6.5 W
Lightning Protection:
DC Grounded
Gain:
+3 dBic @ Zenith
Finish:
White Polyurethane Enamel
Connector:
TNC Female
FAA TSO:
C144
RTCA Environmental:
DO-160G
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 408-20
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
