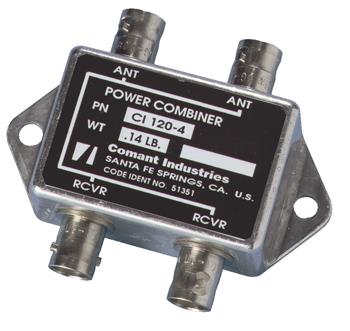

The CI 120-4 power combiner is a two-through-hole-mount style power combiner with BNC ports that combines two VOR/LOC/GS antenna signals into a dual coaxial cable run for two VHF Nav inputs. This combiner is designed as standard equipment with the CI 120-200G/S VOR/LOC/GS VHF blade antenna set and is suitable for internal aircraft mounting.
Features
- 108-118 MHz & 329-335 MHz frequencies
- 2-hole internal aircraft mount
- Combines two VOR/LOC/GS antenna signals into a dual coaxial cable run for two VHF Nav inputs
Specifications
Weight:
0.14 lb
Height:
0.90 in
Frequency:
108–118 MHz 329–335 MHz
VSWR:
1.5:1, max
Power Split:
6 dB
Isolation (Between Ports):
20 dB
Insertion Loss:
1.5 dB
Amplitude Balance:
± 0.5 dB
Impedance:
50 Ω
Phase (Between Ports):
180º ± 5
Construction:
Die Cast Aluminum
Finish:
Aluminum
Connector:
BNC Female
Mounting Location:
Internal
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 120-4
Mil Spec, TSO, Certification: C34E, C36E, C40C, Subcomponent of CI-120-200G/S
HS Code: 8529.10.4000
