TNC Female Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195

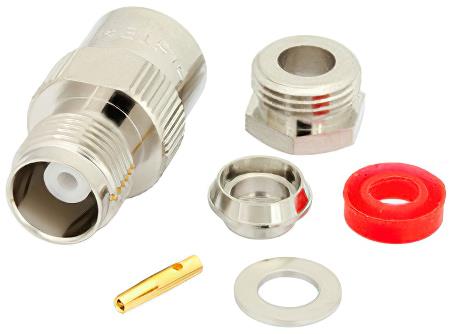

PE4068 TNC female coaxial connector has an interface type of RG58, RG55, RG141, RG142, RG223, RG400, RG303, PE-C195, PE-P195, LMR-195 and a 50 Ohm impedance. Pasternack TNC female connector uses shield/contact clamp/solder as an attachment method.
The Pasternack TNC female coaxial connector has a PTFE dielectric type. The Pasternack TNC coaxial connector has a brass body with nickel plating. Our PE4068 TNC connector uses brass contact. This TNC female coaxial RF connector is RoHS and REACH compliant.
Key Specifications
| Polarity | Standard |
| Connector Series | TNC |
| Connector Gender | Female |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Clamp/Solder |
| Mount Method | None |
| Interface Type 1 | RG58 |
| Interface Type 2 | RG55 |
| Interface Type 3 | RG141 |
| Interface Type 4 | RG142 |
| Interface Type 5 | RG223 |
| Interface Type 6 | RG400 |
| Interface Type 7 | RG303 |
| Interface Type 8 | PE-C195 |
| Interface Type 9 | PE-P195 |
| Interface Type 10 | LMR-195 |
Unit of Measure: EACH
Supplier/Manufacturer SKU: PE4068
Mil Spec, TSO, Certification:
HS Code: 85366940
HAZMAT:
UN#:
