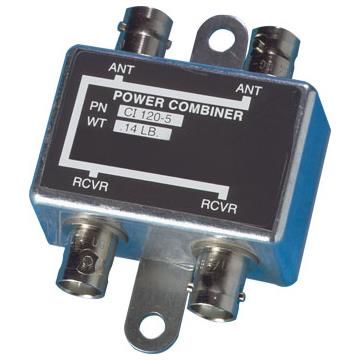

The CI 120-5 power combiner is a two-through-hole-mount style two-input, two-output power combiner is standard equipment with the CI 120-200G/S-L VHF blade antenna set as supplied to Cessna. The CI 120-5 allows for 2 separate coaxial cable runs to the avionics installation for NAV1 and NAV2 receivers and is suitable for internal aircraft mounting.
Features
- 108-118 MHz & 329-335 MHz frequencies
- 2-hole internal aircraft mount
- Allows for 2 separate coaxial cable runs to the avionics installation for NAV1 and NAV2 receivers
Specifications
Weight:
0.25 lb
Height:
0.88 in
Frequency:
108–118 MHz
329–335 MHz
VSWR:
1.5:1, max
Power Split:
6 dB
Isolation (Between Ports):
20 dB
Insertion Loss:
1.5 dB
Amplitude Balance:
± 0.5 dB
Impedance:
50 Ω
Phase (Between Ports):
180º ± 5
Construction:
Die Cast Aluminum
Finish:
Aluminum
Connector:
BNC Female
Mounting Location:
Internal
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 120-5
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
