Home DIPLEXOR | VOR/GS Antenna - VOR (2) & GS Reciever, BNC, RAMI

DIPLEXOR | VOR/GS Antenna - VOR (2) & GS Reciever, BNC, RAMI

Out of stock
Product code: AV-571

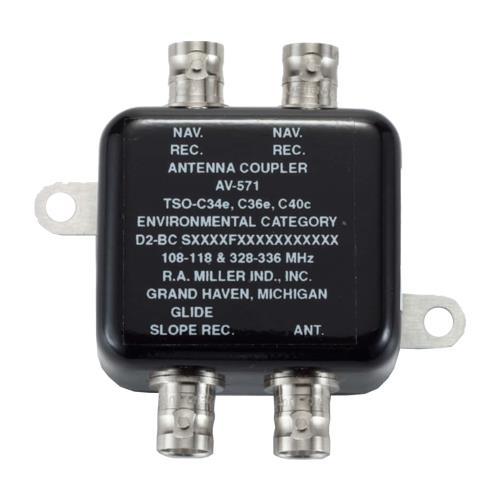

The AV-571 diplexer/splitter splits the signal from a VOR-Type antenna to feed two NAV and one Glide Slope receivers. This product is a direct replacement for the CI 505.

$0.00
RRP: $315.00

The diplexer/splitter’s construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.

Model AV-571
Application VOR/LOC/GS (Receive Only)
Frequency 108-118 MHz
328-336 MHz
Impedance 50 Ohms Nominal
VSWR 1.4:1 Maximum
Insertion Loss 1 dB Maximum (GS)
3.5 dB Maximum (VOR/LOC)
Isolation 22 dB Minimum / 35 dB Avg
Connectors (4) “BNC” Female
Max. Weight 3.5 oz.
FAA TSO C34e, C36e, C40c
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-571
Mil Spec, TSO, Certification: C34e, C36e, C40c
HS Code:
HAZMAT:
UN#:
