Home Solder Sleeve, Immersion Resistant , 0.050-0.170in, 150degC

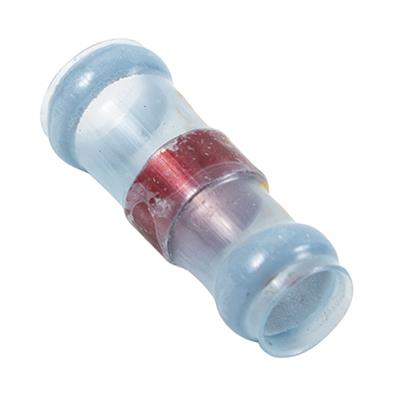

Solder Sleeve, Immersion Resistant , 0.050-0.170in, 150degC

In stock
Product code: S01-03-R

This S01-03-R solder sleeve terminal fits wire diameters of 0.050 – 0.170 inch (øD). No lead or braid.

$2.06 $0.00

S01 series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

  • Mil-Spec. AS83519/1 Qualified
  • Immersion Resistant
  • 150°C Operating Temperature
  • 183°C Solder Melt Temperature
  • Convection or infrared heated installation
  • Sn63 (RMA flux)
Unit of Measure: EACH
Supplier/Manufacturer SKU: 775210-000
Mil Spec, TSO, Certification: M83519/1-3
HS Code: 8536.69.4040
HAZMAT:
UN#:
