Alt. Part Number: SS-51051-K2915

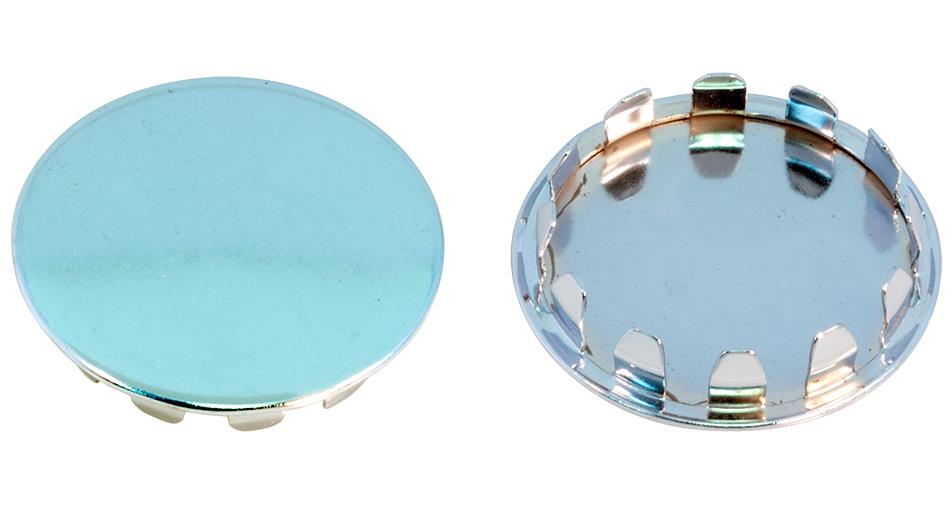

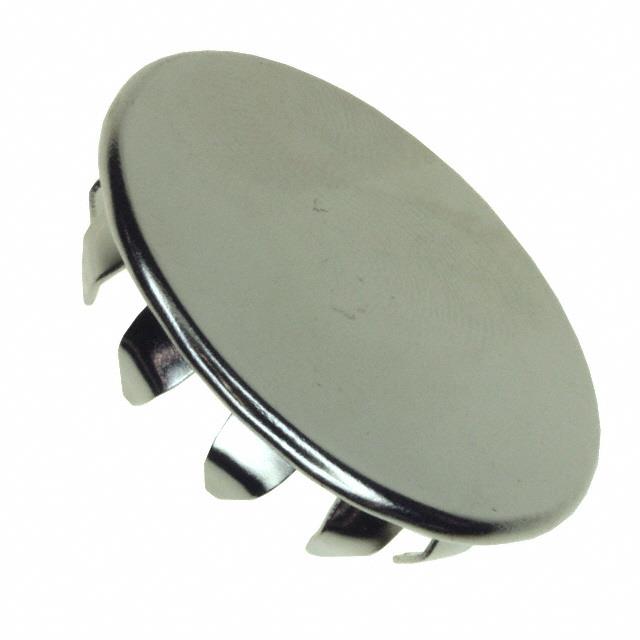

An item, usually made of metal, having a finished cap with spring tension prongs on the underside, or spring wire fitted into the sides of the walls. When inserted in punched or drilled holes in metal sheets or tubes, the expanding action of the prongs or spring wire holds the item securely in place. It is specifically designed to close a hole; to cover a hole through which passes a shaft, cable, or the like; or to provide a perforated cover for a vent or breather hole.
|
Description: |
Plug Button |
|
Head Height: |
0.359 inches |
|
Overall Height: |
0.625 inches |
|
Head Outside Diameter: |
0.062 inches |
|
Material Accommodated Thickness: |
0.063 inches - 0.125 inches |
|
Hole Accommodation Diameter: |
0.469 inches |
|
Prong Outside Diameter: |
0.484 inches |
|
Prong Quantity: |
8 |
|
Material: |
Steel comp 1010 |
|
Material Specification: |
66 federal standard single material response |
|
Surface Treatment: |
Cadmium |
|
Style Designator: |
Standard |
