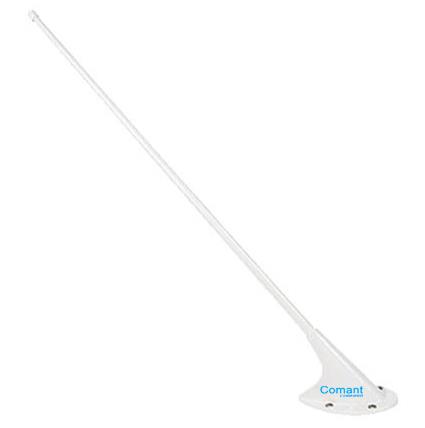

The CI 121 antenna is a four-through-hole-mount style VHF communication rod antenna with a BNC port. It is equivalent to the CI 109 VHF rod antenna except it features a smaller diameter whip and weighs less. It is also suitable for top mounting with light fixed-wing single-engine and multi-engine aircraft and helicopters.
Features
- Frequencies covered: 118–137 MHz
- Whip configuration
- Ideal for light fixed-wing single-engine and multi-engine aircraft and helicopters
Specifications
Weight:
0.6 lb
Height:
19 in
Material:
Cast Housing / Fiberglass Whip
Finish:
Glossy White Polyurethane Enamel
Connector:
BNC Female
Frequency:
118–137 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance:
50Ω
Power RF:
50 Watts
Temperature Range:
-55°C to 85°C
Altitude:
50,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
B12607-3 Cork Neoprene
Download Specification Sheet
Dimensions: 80.00 x 90.00 x 625.00 mm (H x W x L)
Weight: 482.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 121
Mil Spec, TSO, Certification: N/A
HS Code: 8529.10.4000
HAZMAT:
