Home Led Anti-Collision Beacon, 28V, Upper 5-Hole

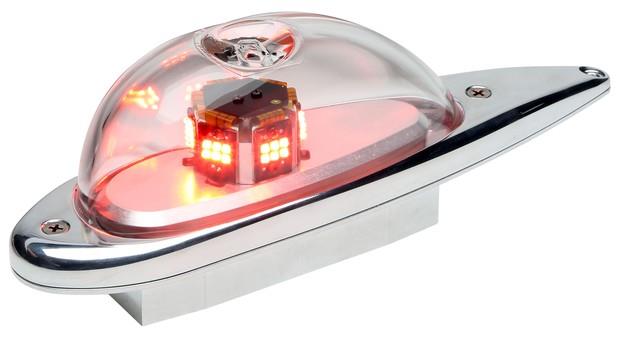

Led Anti-Collision Beacon, 28V, Upper 5-Hole

Out of stock
Product code: 9072412

Model 90724 Series is a self-contained LED anti-collision beacon. Cable Pigtail, Class III.

$0.00

To determine the model required for replacement, the following information is needed: upper or lower mounting, number of mounting holes (5 or 8), weight & position installed. Beacons installed on the rudder, example: Citations and Barons, require a 2.25lb. assembly. Top replacement on Gulfstream II & III require a 9072412 in conjunction with the optional 16 hole mounting plate, p/n 06-170618-00.

The 90724 series are self-contained (no external power supply required) LED Anti-Collision Beacons. The solid-state circuitry and LED light source makes the "old style" mechanical oscillating beacons and the Whelen 90044 series quartz halogen flashing beacons obsolete. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on-off cycles.

Tech Specifications:

  • Power Consumption: 0.45 amps at 28VDC
  • LED Color: Aviation Red
  • Weight: 1.8 pounds (816gm)
  • Exposed Height: 2.70" (69mm)
  • Lens Color: Clear glass
