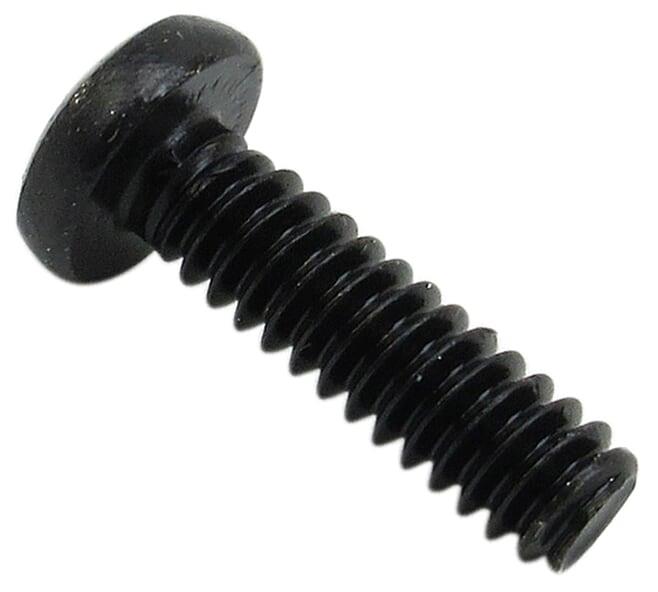

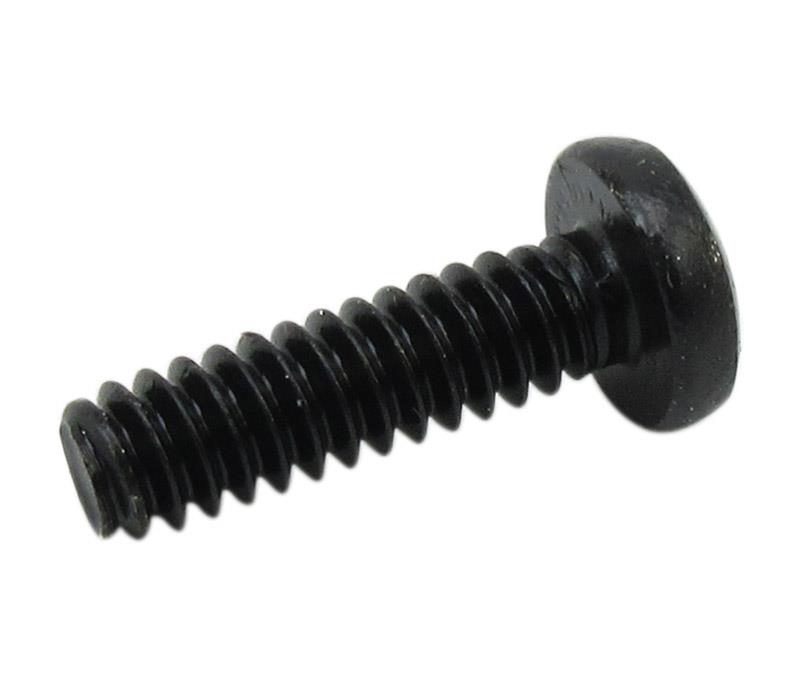

Machine Screw, Pan head, 6-32, 1-1/2 inch, Black brass

In stock

Product code: MS35214-33

Length: 1-1/2", thread: 6-32, pan head machine screw, black brass, coarse thread.

$0.73 $0.00

Pan Head Machine Screw, Black Brass, Coarse Thread.

Thread Class: 2a

Thread Direction: Right-hand

Thread Length: 1.438 inches minimum and 1.500 inches maximum

Fastener Length: 1.500 inches nominal

Head Style: Pan

Head Diameter: 0.256 inches minimum and 0.270 inches maximum

Head Height: 0.087 inches minimum and 0.097 inches maximum

Internal Drive Style: Cross recess type 1

Thread Diameter: 0.138 inches

Thready Qty Per Inch (tpi): 32

Min. Tensile Strength (psi): 57000 pounds per square inch

Screw Material: Copper alloy

Screw Material Specification: Qq-b-626 fed spec single material response or qq-w-321 fed spec single material response

Thread Series Designator: Unc

Unit of Measure: EACH

Supplier/Manufacturer SKU: MS35214-33
