ADS-B COMPATIBLE WITH A UAT 978 SYSTEMS

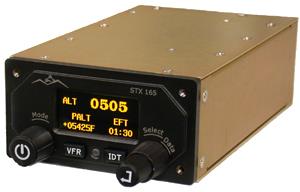

The STX 165 Sports a professional 1/2 3ATI Bezel that complements any aircraft panel. Its bright OLED display is readable in virtually all lighting conditions and automatically dims for night time operations. Check out just a few of the STX 165 features.
- Built-in Encoder – Simplifies installations and lowers cost.
- Three Timer Functions – Elapsed Flight Time, Up Timer, Down Timer
- Pressure Altitude Display – See what altitude your transponder is reporting to Center
- Optional OAT Probe Input – Displays Outside Air Temp.,Density Altitude, Icing Alert
- Small and Light Weight – 7.4″ behind the panel depth, 1.3 lbs.
- Low Current Requirements – Ideal for LSA – Glider – UAV Operations
- ADS-B Compatible
We recommend that you do not install both 1090ES and UAT ADS-B OUT capability on the same aircraft” FAA Advisory Circular AC 20-165A
The chart below shows the current requirements for the STX 165 and STX 16R with both 14 and 28 volt power inputs and squawk codes of 7777 and 1200. The encoder heater is off for these calculations.
STX 165 Panel Mount
| Aircraft Power | PRF | Squawk Code | Watts | Current |
| 14Vdc | 500 | 7777 | 13.16 | .94A |
| 14Vdc | 500 | 1200 | 11.49 | .82A |
| 28Vdc | 500 | 777 | 21.14 | .76A |
| 28Vdc | 500 | 1200 | 19.68 | .70A |
STX165R Remote Mount Unit
| Aircraft Power | PRF | Squawk Code | Watts | Current |
| 14Vdc | 500 | 7777 | 5.06 | .36A |
| 14Vdc | 500 | 1200 | 3.65 | .26A |
| 28Vdc | 500 | 7777 | 5.12 | .18A |
| 28Vdc | 500 | 1200 | 3.66 | .13 |
Unit of Measure: EACH
Supplier/Manufacturer SKU: 705832-00
Mil Spec, TSO, Certification:
HS Code:
HAZMAT:
UN#:
