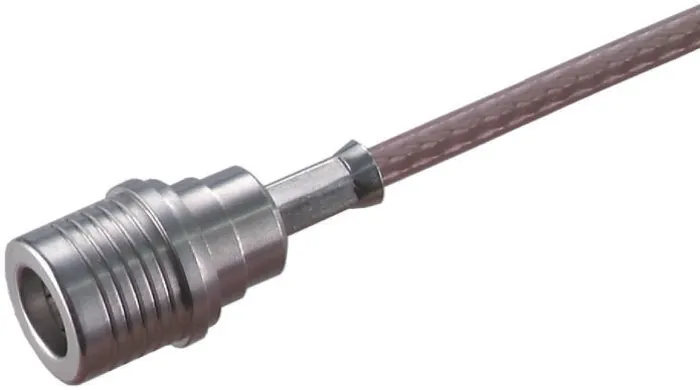

The interface is based on the SMA dimensions, but instead of a threaded coupling mechanism, a new snap-lock mechanism is used.The QMA interface has a very similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation, resulting in significant time saving during the production of systems. The packaging density of QMA is increased compared to SMA connectors as no torque spanner is required to fasten the coupling nut.
Specifications
Brand: Huber+Suhner
Coaxial Connector Type: QMA
Product Type: Coaxial Connector
Mount Type: Cable
Impedance: 50Ω
Connector Gender: Male
Orientation: Straight
Cable Type: RG400/U
Size: Standard
Bulkhead: No
Operating Frequency: 11 GHz
Minimum Operating Temperature: -40°C
Body Plating: Copper
Polarity: Normal
Maximum Operating Temperature: 85°C
Termination Type: Crimp
Contact Gender: Male
Series: QMA
Standards/Approvals: RoHS
Contact Material: Brass
Contact Plating: Gold
Country of Origin: Switzerland
