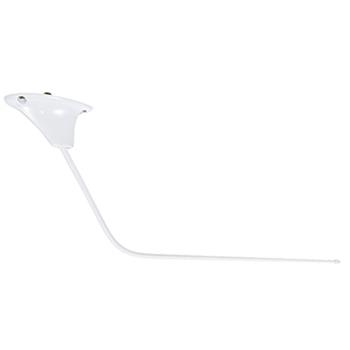

The DM C63-2 is a low profile "bentback" radiating element designed for mounting on the bottom of the fuselage. All DM C63-Series antennas are supplied with a gasket and a doubler plate. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Machine tapered aluminum alloy radiating elements
- 3-hole mounting
- VHF communication
- Designed for high mechanical strength
Specifications
Weight:
8 oz
Height:
8 in. max
Frequency:
118-137 MHz
VSWR:
3.0:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance (RF):
50 ohms
Power (RF):
50 watts
Certifications:
FAA TSO C37b, C38d
Unit of Measure: EACH
Supplier/Manufacturer SKU: DM C63-2
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
