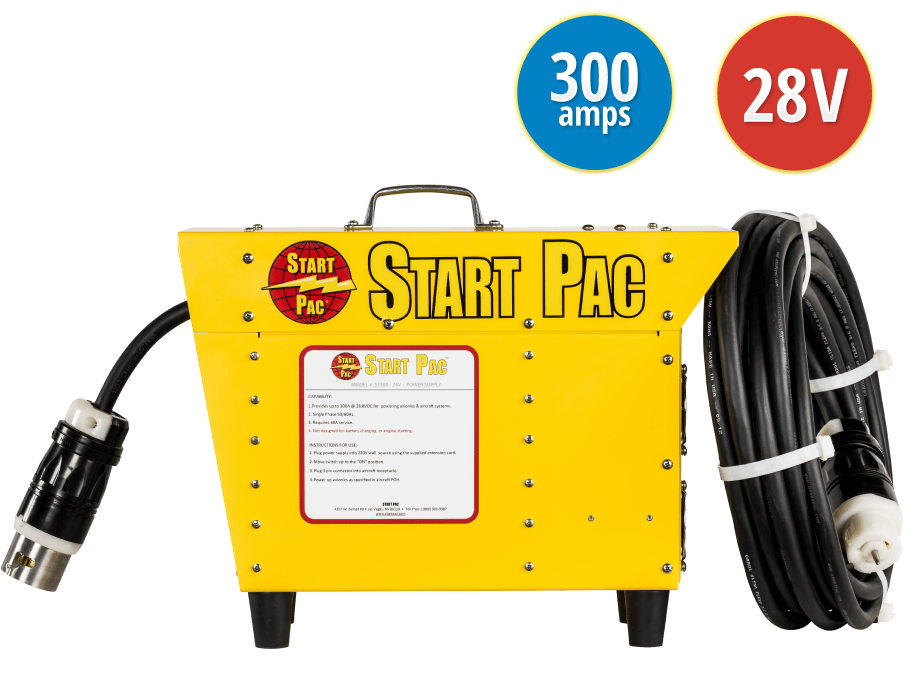

Model: 53300™ – 24V/28V
This START PAC® model has been designed to power up 28 Volt aircraft systems and will continuously deliver up to full 300 amp DC output. The voltage output is set to 28 Volts to simulate the same voltage as when the aircraft is running under power. This unit requires 220 Volt single phase power to operate.
Description
This START PAC® unit has been specifically designed for maintenance and to power up various functions such as inverters, avionics, GPS programming and on-board air conditioning, etc. Using this START PAC® power supply means that the operator can bypass the aircraft battery thus preserving it from unnecessary wear. The on board aircraft battery can be conserved for starting only. The environmentally responsible, low VOC powder coating protects the unit from wear, tear and poor weather conditions.
Specifications
| Maximum Continuous Current output: | 300 A |
| DC voltage output: | 28 VDC |
| AC voltage input: | 180 – 240 VAC |
| AC current input at maximum DC power output: | 40 A @220VAC |
| Phase: | Single |
| Forced air-cooling: | Yes |
| Over current protection: | Yes |
| Over voltage protection: | Yes |
| Over temperature protection: | Yes |
| Complete Weight: | 42lbs/19kg |

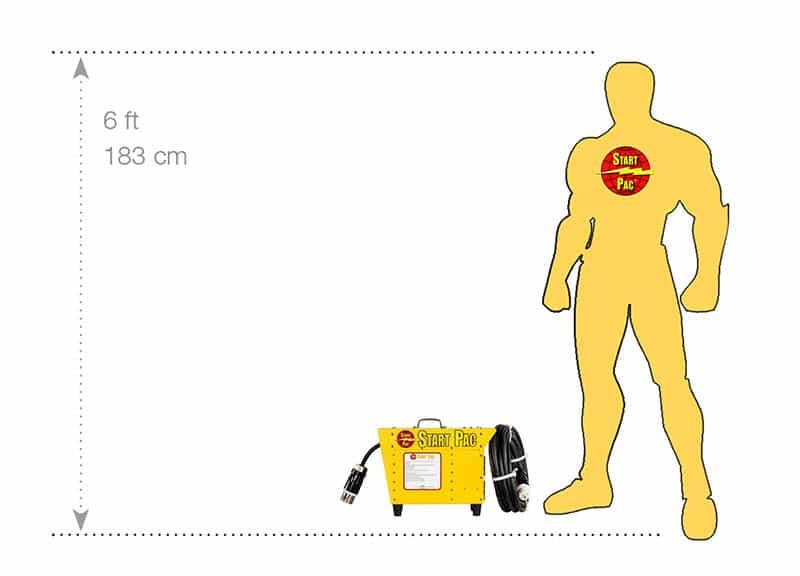

| Dimensions – Length x Width x Height: | 20″ x 8″ x 13″ (51 x 20 x 33 cm) |
