MIL-W-25038/3 (Thermazone IIIK) wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure. MIL-W-25038/3(Thermazone IIIG) wires also meet or exceed the requirements of MIL-W-25083/3, but provide this performance at a lower cost through the use of an innovative insulation system.
Overview
Designed to endure the extreme temperatures found in aircraft engine environments and other harsh conditions. These cables meet or exceed the MIL-DTL-25038/3 requirements, ensuring high performance and reliability.
Designed to endure the extreme temperatures found in aircraft engine environments and other harsh conditions. These cables meet or exceed the MIL-DTL-25038/3 requirements, ensuring high performance and reliability.
Specifications
- Voltage: 600 V
- Temperature Rating: Up to 260°C
- Fire Resistance: 15 minutes at 2000°F
- Insulation Resistance: 50 Ohms up to 15,000 Ohms on 20 AWG
- Thermal Shock: Maximum change of 0.060"
- High Temperature Endurance: 100 hours at 343°C

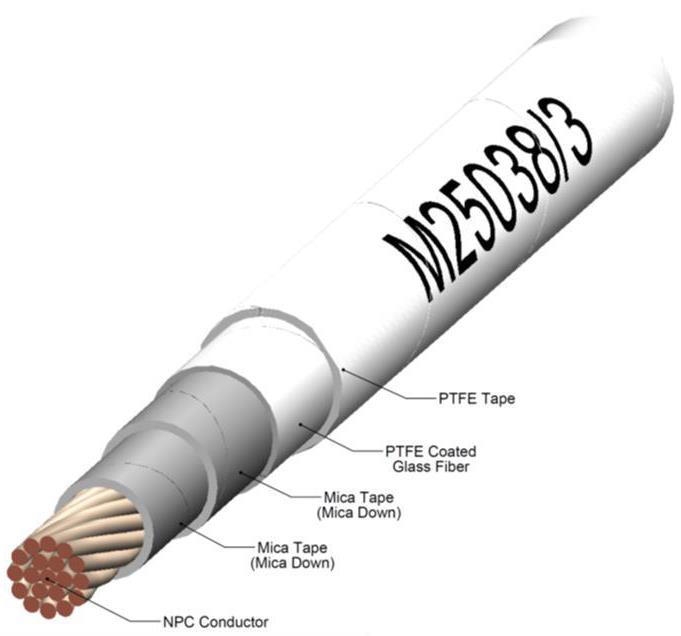

Construction
- Conductor: 27% Nickel-Plated Copper/Alloy
- Insulation: Mica Tape, Fiberglass Coated PTFE Tape
- Jacket: PTFE Tape
Cable Variants
- M25038/3-20-9 27478
- V00322-* (22 AWG)
- V00322H-* (22 AWG, heavy-wall)
- V00320-* (20 AWG)
- V00318-* (18 AWG)
- V00316-* (16 AWG)
- V00314-* (14 AWG)
- V00312-* (12 AWG)
Key Benefits
- Fire resistance tested per MIL-DTL-25038/3 "Shake & Bake"
- Lightweight and small diameter options available
- Customizable color coding
Unit of Measure: FEET
Supplier/Manufacturer SKU: M25038/3-20-9
Mil Spec, TSO, Certification: M25038/3-20-9
HS Code: 8544.11.0050
HAZMAT:
UN#:
