Hazmat - Ultima AF ELT, MnO2 Lithium Battery, 5-year Life

☠ HAZMAT: Additional shipping precautions are necessary for this item.

Installed horizontally on fixed-wing aircraft.

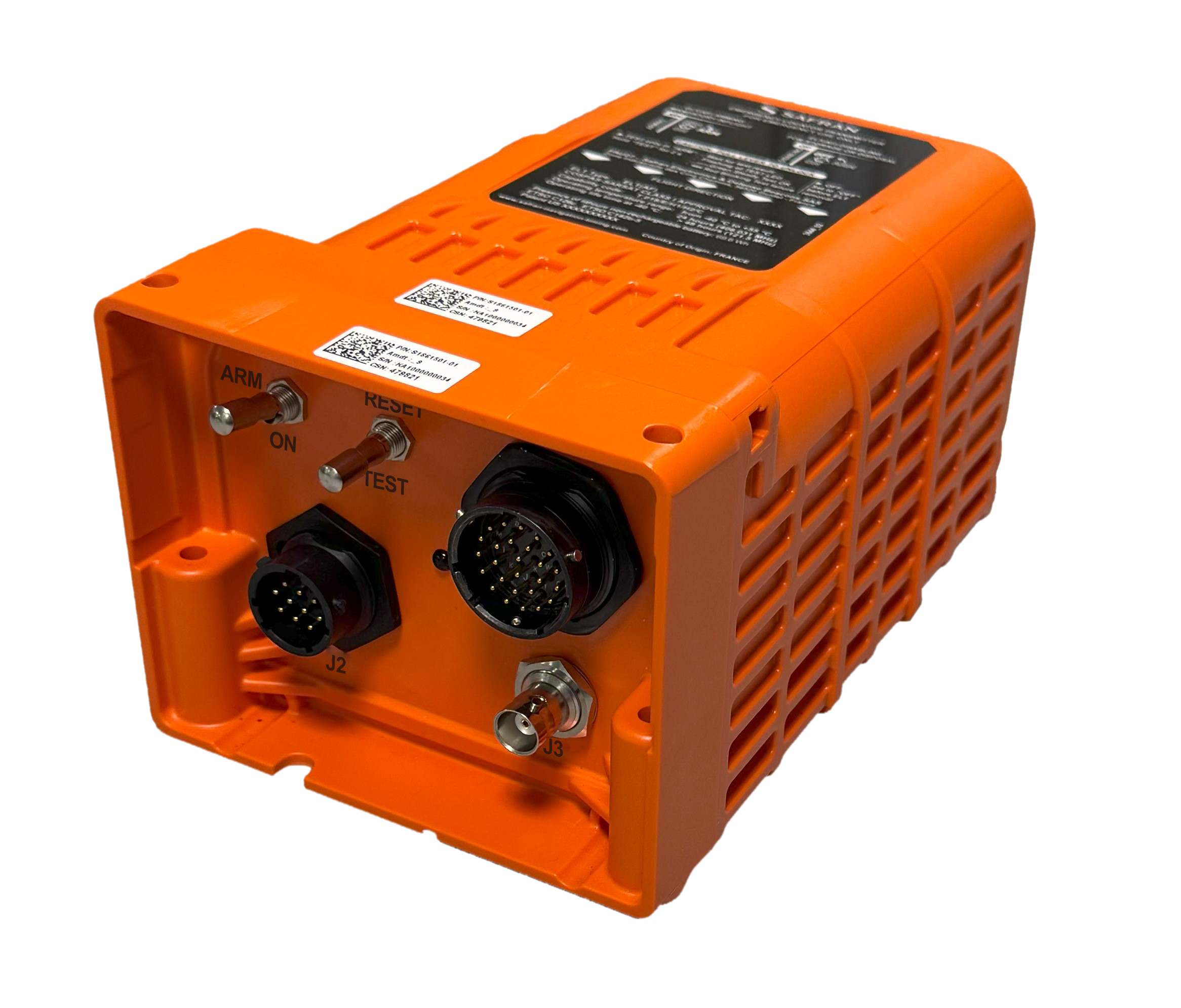

KANNAD ULTIMA-AF is a new generation of fixed crash survivable ELT (AF) compliant with the lithium battery requirements set by FAA and EASA. Designed to be installed in the aircraft fuselage, it offers both vertical and horizontal installation configuration.

SGB Compliant (Second Generation Beacons) - This system will allow for pinpointing the location of the beacon with a high degree of accuracy in near real-time, a feature not available in the current system.

Manual & Automatic Activation - KANNAD ULTIMA-AF can be activated manually with a cockpit remote control panel or the KANNAD ULTIMA-AF front control panel and automatically through its 6-axis crash acceleration sensor.

Internal Antenna - Operating independently from the aircraft, the back-up antenna significantly improves the chances of transmitting your position via the 406MHz frequency to the Cospas-Sarsat search and rescue satellites even if the antenna is destroyed and/or the cable connecting the ELT and the antenna is broken.

Integrated Navigation Interface - The KANNAD ULTIMA-AF can be connected to the aircraft ARINC429 or RS232 thanks to its integrated navigation interface which enhances the accuracy of the distress signal reported.

Easy Installation - KANNAD ULTIMA-AF is designed to be installed either with or without a mounting bracket. Its mounting bracket is compatible with Kannad legacy ELTs mounted holes. Several versions available for fixed-wing and helicopter applications.

Features

PART NUMBERS
Ultima AF: installed horizontally on fixed-wing aircrafts (S1861501-01 )
Ultima AF-H: installed horizontally on helicopters (S1861501-02)
Ultima AF-HV: installed vertically on helicopters (S1861501-03)

PRODUCT TYPE
FixedELT
Class 1 (-40°to +55°for full operating lifetime)
CospasSarsatELT(AF)

ACTIVATION
Automaticallyvia 6-axis crash acceleration sensor
Manuallyviaa cockpit remotecontrol panel or Ultima AF front control panel

SIGNAL / MESSAGE
121.5 MHz homing signal
243 MHz militaryhoming signal
406 MHz, Second Generation Beacon; Programmable Protocols

LOCATION
First FixedElt(AF) usingSGB distresssignal

BATTERY TYPE
DO227A compliant
5 years battery life

SIZE / WEIGHT
193 x 115 x 94 mm (ELT only)
193 x 115 x 125 mm (ELT with bracket)
ULTIMA-AF : 1480 g typical
Bracket : 414 g typical

PROGRAMMING
Programming Adapter (Dongle) or Service Adapter via dedicated connector

APPROVAL AND CERTIFCATION
(E)TSO-C126C/ TSO-C126C
(E)TSO-C142B/ TSO-C142B
ED-62B / DO-204B
DO227A
COSPAS-SARSAT: T.018/T.021
