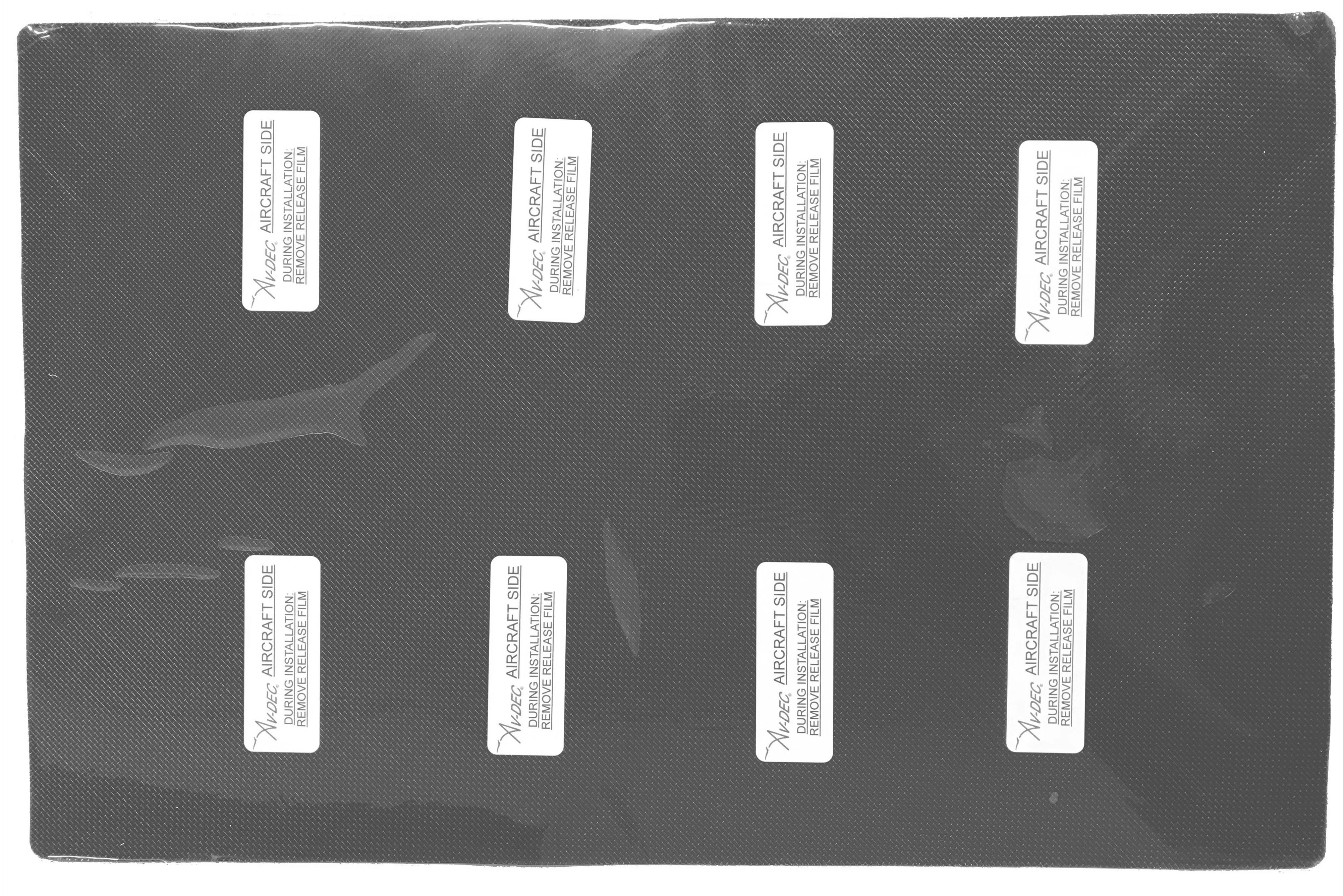

HI-TAK® Conductive Specialty Gasket
Conductive gasket material designed for use as an environmental sealant. The flexible nature of this system provides for easy access for inspection or repair long after the original application.
The system demonstrates excellent cohesion after installation and provides a high degree of environmental protection while still allowing for easy removal.
Shapes to fit most aircraft antennas are available. customer shapes are readily available.
Physical Properties
| Colour | Grey |
| Thickness · As supplied · Compressed |
Standard = 0.030in (0.762mm) Standard = 0.020in (0.508mm) |
| Frame (Mesh) | 5056 Aluminum |
| Weight/Area (Nominal) | 0.023 oz/in2 (0.101 g/cm2) |
| Bonding Resistance, Antenna to Aircraft | MIL-B-5087B Class “R”, ≤ 2.5mΩ |
| Shelf Life, Sealed Container | Indefinite (in original packaging and protected from UV exposure) |
| Reactivity, to typical aviation metallic and non-metallic surfaces | None (Product supplied fully cured) |
| Service Temperature Guide per RTCA DO-160G, Section 5, 2 cycles | -85ºF to 275ºF (-65ºC to 135ºC) |
| Salt Fog 3000hrs (ASTM B117) | No corrosion |
| Fluids Resistance per RTCA DO-160G, Section 11 | Contact: technicalsupport@avdec.com |
IMPORTANT – Consult the Material Safety Data Sheet (SDS) before using this material.
Unit of Measure: EACH
Supplier/Manufacturer SKU: BL260170-01
Mil Spec, TSO, Certification:
HS Code: 3926.90.4500
HAZMAT:
UN#:
