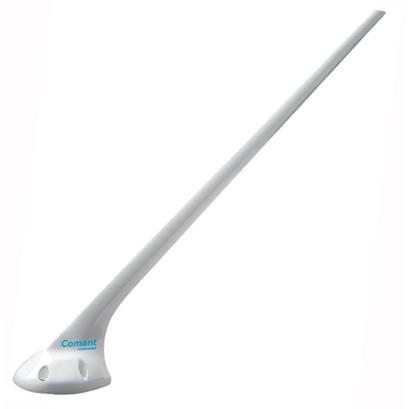

The CI 248-5 antena is a four-through-hole-mount style VHF communication whip antenna with a BNC port. This antenna is equipped with a built-in harmonic suppression filter that allows for installation near GPS antennas without co-site interference. It is suitable for top mounting with light fixed-wing single-engine aircraft and helicopters.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Molded glass-filled nylon housing
- Polyurethane enamel finish
- BNC connector
Specifications
Weight:
0.52 lb
Height:
17.5 in
Frequency:
118–137 MHz
VSWR:
2.5:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Power (RF):
25 W
Harmonic Rejection:
80 dB
Material:
Molded Glass Filled Nylon
Finish:
Glossy White
Connector:
BNC Female
Temperature:
-55ºC to 85ºC
Altitude:
50,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Gasket:
B24809 Cork Neoprene
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 248-5
Mil Spec, TSO, Certification: C37d, C38d
HS Code: 8529.10.4000
HAZMAT:
UN#:
