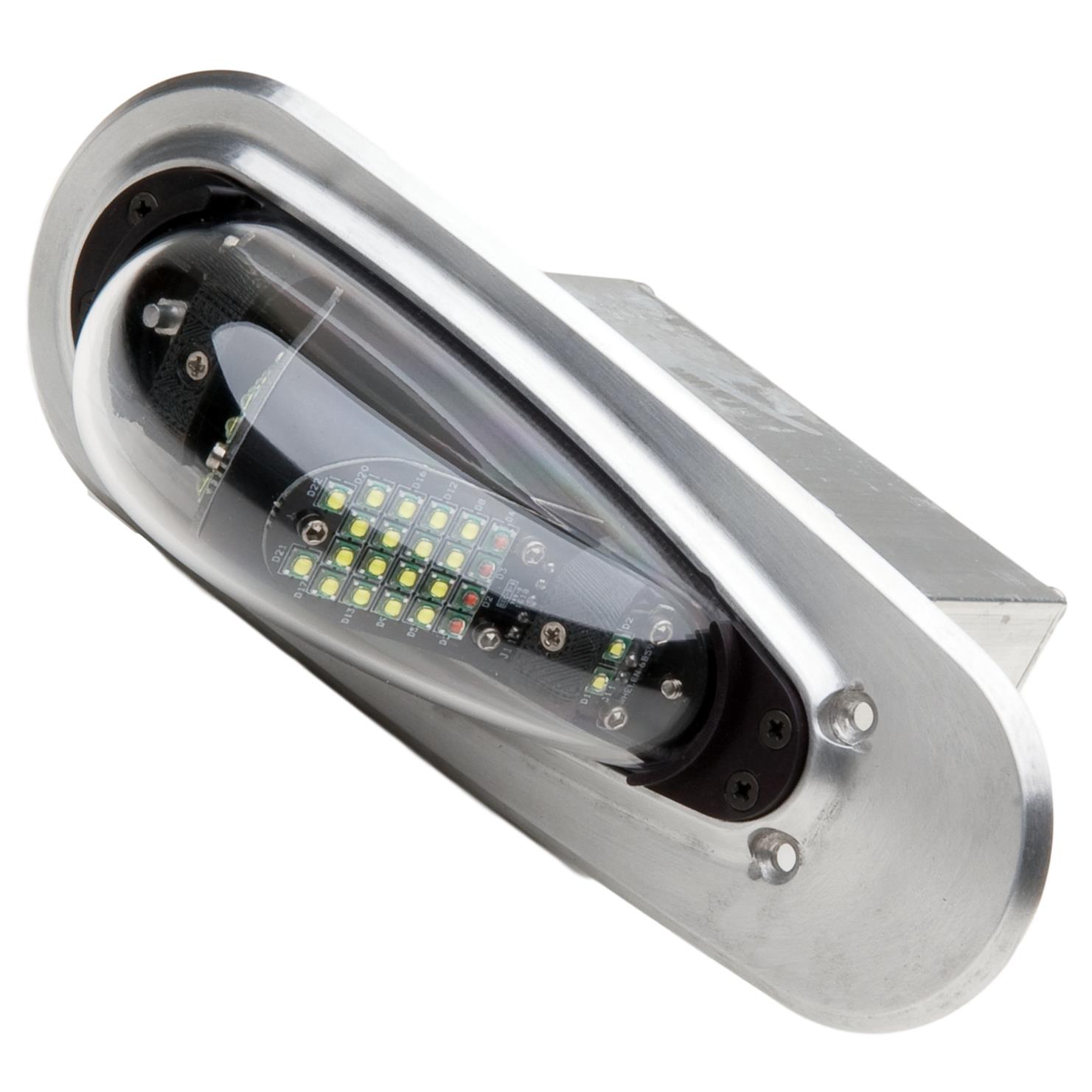

90613 Series is a self contained, all LED forward and aft position light with a white anti-collision light. These assemblies interconnect with standard Amp Mate-N-Lock connectors. 90613 assemblies have the same hole pattern of the original Cessna Caravan light. These assemblies currently are TSO approved and STC Approved for the Caravan.
- Drawing: 90613
- Dimensions: 7.04" L x 2.63" W X 2.02" Exposed H
- Current Draw
- 28VDC: Position Light: 0.23 Amps | Anti-Collision Light 0.73 Amps (Average) | 3.9 Amps (Peak)
- Weight: 0.88 Lbs.
- Lens: Polycarbonate | Replacement Lens Part Number: 68-3990574A30
Unit of Measure: EACH
Supplier/Manufacturer SKU: 01-0790613-91
