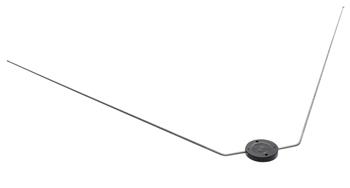

The AV-525 is a VOR/LOC/GS (receive only) antenna similar in style to the AV-12 but utilizes an internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 157P.
Features
- 108–118 MHz (VOR/LOC) & 328–336 MHz (GS) frequency ranges
- Horizontal polarization
- Omni-directional pattern
- BNC female connector
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max. Weight:
0.50 lb
Application:
VOR/LOC/GS Receive Only
Frequency:
108–118 MHz (VOR/LOC)
328–336 MHz (GS)
Impedance:
50 Ohms Nominal
VSWR:
3.0:1 Maximum 108–118 MHz
2.0:1 Maximum 328–336 MHz
Polarization:
Horizontal
Pattern:
Omni-directional
Connector:
BNC Female
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40c
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-525
Mil Spec, TSO, Certification: C34e, C36e, C40c
HS Code: 8529.10.4000
