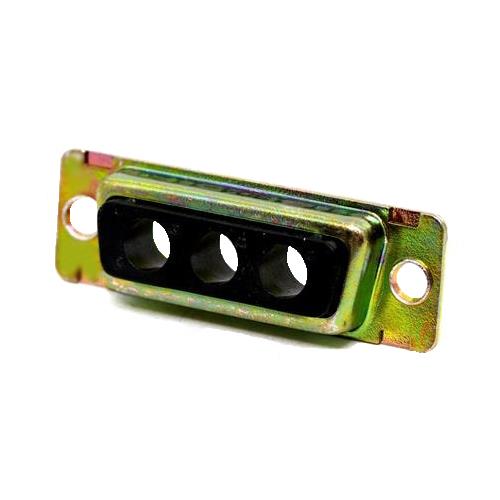

Global Manufacturing Part Number: 053512-0078
ITT Cannon Combination D-subminiature rectangular connectors offer the advantages of an industry standard shield I/O interconnect, with the flexibility of a customized special, designed for both commercial/industrial applications and military/aerospace applications but have found worldwide acceptance in a multitude of applications ranging from office equipment to satellites. These D-subminiature connectors are ideal for applications that require optimization of space while improving overall shielding. Combination D-subminiature connectors accomplish this by combining multiple interconnect types into one fully-shielded product, decreasing the number I/O interfaces and reducing the possibility of EMI/RFI leakage.
Specifications
| General | Combo D Series: D-Subminiature offering mixed layouts |
| Wire Gauge Range AWG | AWG 8-26 |
| Contact Arrangement | 3W3 (3 empty size 8 cavities) |
| Dielectric Withstanding Voltage | 1000 VAC at sea level |
| Current Rating Signal Contacts | 7.5 max |
| Operating Temperature | -55°/+125° |
| Salt Spray Test | 20 hours |
| Shell Material | Steel |
| Shell Finish | Yellow chromate over zinc |
| Insulator Material | Thermoplastic, type PCT UL 94V-0 |
| Insulator Color | Black |
| Gender | Pin |
| Contacts | Delivery without size 8 contacts, please order separately |
| Mounting Method | .120'' (3,05mm) Through Hole |
