Unshielded cable clamps allow the cable to exit the back shell at a straight/45° angle. They can be used with on either plugs or receptacles and will not interfere with commonly used hardware such as male screw retainers, female screw locks, or spring latches and latching blocks. The hinged assembly allows for easy installation over a wire harness.

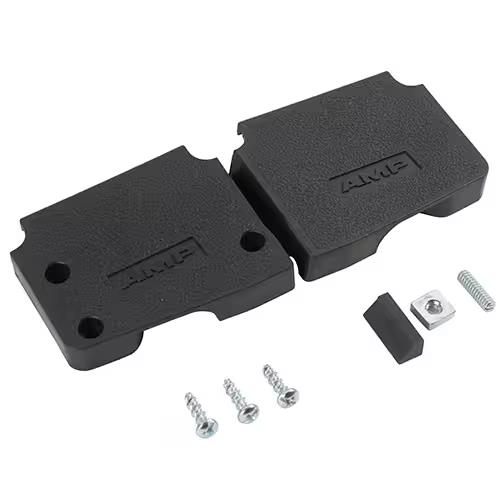

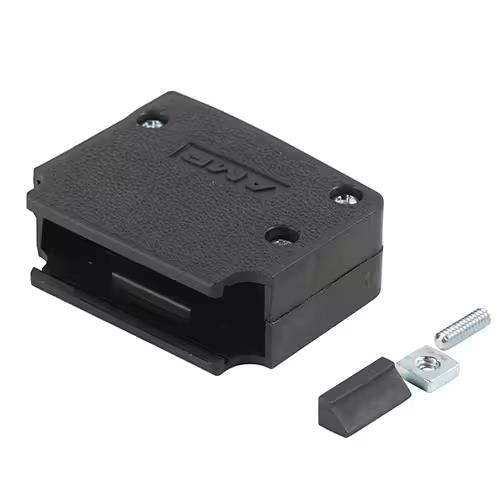

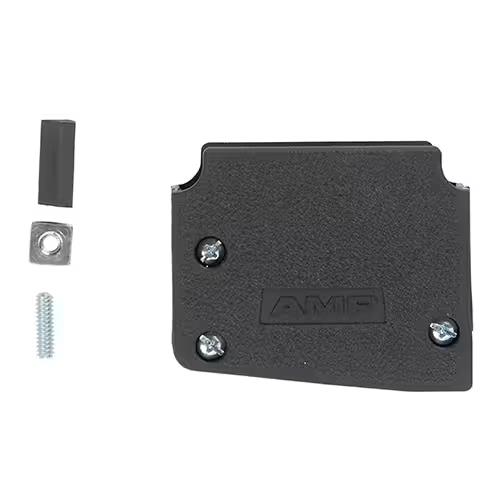

This unshielded cable clamp kit (EDMO# 5205732-1) features a #5 shell size and has a 15.24 mm cable diameter, and cable exits at either straight or 45°.
Features
- Polypropylene unshielded, clamp shell housing
- Variable cable entry angle
- Adjustable screws can tightness cable strain reliefs
- Cable clamp kit assemblies include hardware for convenient plug/receptacle mating
Specifications
Dimensions:
2.223 x 1.775 x 0.75 in
Cable Entry Angle:
Variable (Straight/45°)
Cable Diameter:
15.24 mm
Connector Type:
D-Sub backshell
Number of Cable Entries:
2
Number of Positions:
50/78-positions
Shell Size:
5(D)
Shell Material:
polypropylene
Unit of Measure: EACH
Supplier/Manufacturer SKU: 5205732-1
Mil Spec, TSO, Certification: MIL-C-24308
HS Code: 8536.90.4000
HAZMAT:
UN#:
