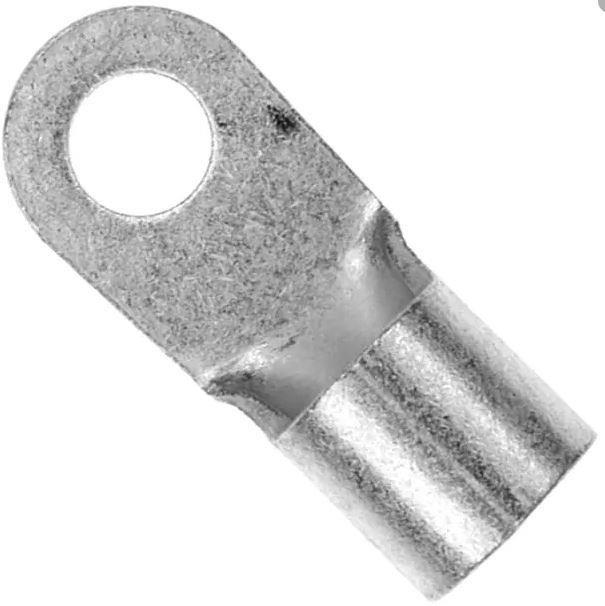

RING TERMINAL | 2G, 5/16 (Solistrand)

SOLISTRAND Terminals and Splices offer superior performance characteristics while terminating solid and stranded wire or irregular shaped conductors.

Features

• Uninsulated, tin plating
• Wire range: 26 AWG (0.1 mm2) - 600 MCM
• Operating Voltage: designed to handle voltage rating for assigned wire
• Temperature rated up to 170°C
• UL Listed, CSA certified
• Many SOLISTRAND terminals meet or exceed SAE AS7928, Type I, Class 1 and 2 requirements

Benefits

• Corrosion and vibration resistant, superior tensile strength
• Brazed seam for uniform metal strength around the entire barrel area assuring withstanding harsh industrial environments. Brazed seam also prevents pinched wires
• “W” crimp provides excellent electrical performance and higher tensile strength
• Dimples or serrations inside the wire barrel provide optimum tensile strength and maximum electrical contact area after crimping
• Bell mouth on barrel entrance makes insertion of wires easier
