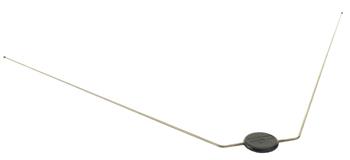

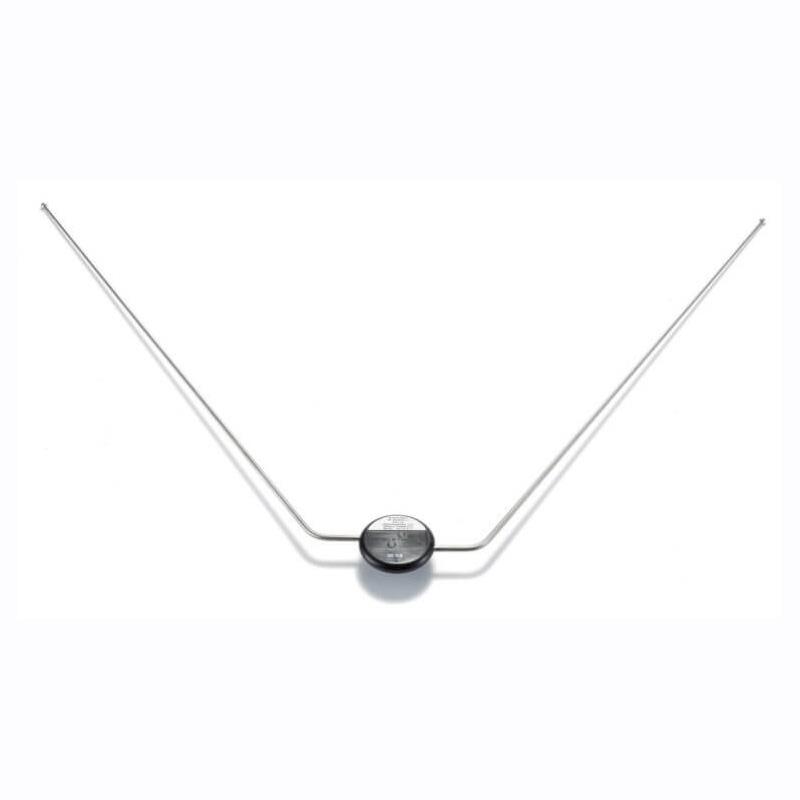

The AV-12 is a VOR/LOC/GS receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at both UHF and VHF frequencies, speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph.
| Model | AV-12 |
| Application | VOR/LOC/GS Receive Only |
| Frequency | 108-118 MHz 328-336 MHz |
| Impedance | 50 Ohms Nominal |
| VSWR | 2.2:1 Maximum |
| Polarization | Horizontal |
| Pattern | Omni-Directional |
| Connector | Threaded studs to accept transmission line assembly with integral balun transformer (not included) |
| FAA TSO | C40c |
Dimensions: 40.00 x 515.00 x 770.00 mm (H x W x L)
Weight: 900.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: AV-12
Mil Spec, TSO, Certification: C40c
HS Code: 8529.10.4000
HAZMAT:
