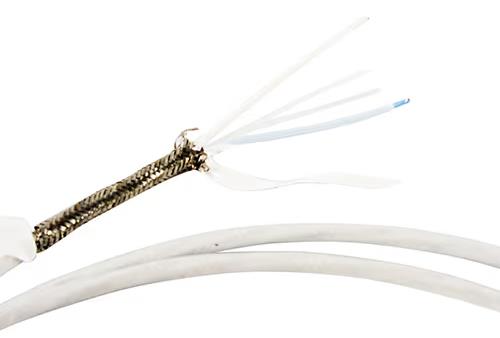

Gigaflight high-speed 24-AWG CAN Bus cable is a laser wire markable, aerospace-grade CAN Bus approved by Garmin for use with Garmin’s CAN Bus System architectures. CAN Bus is designed to be a 120 ohm Twinax, which means the insulation thickness is increased to achieve 120 ohms between the conductors. This increase in thickness creates an issue with contact extraction because the insulation outside diameter is larger than the contact. Gigaflight CAN Bus have solved this issue by using a dual-wall insulation design.
Features
- 24 AWG stranded, silver-plated HSCA conductors
- Solid, high-temp fluoropolymer inner insolation
- Foamed, high-temp fluoropolymer outer construction
- FEP filler
- PTFE binder tape
- Tin-plated copper strip braid, 92% min. coverage
- White, laser-markable Tefzel jacket
Specifications
Weight:
17.5 lb/1000ft (26.04 kg/1000m)
Outer Diameter:
0142 in (3.56 mm)
Operating Temperature:
-55°C to 150°C
Minimum Bend Radius:
0.76 in (19.3 mm)
Impedance:
120Ω
Capacitance:
11.5 pF/ft (37.7 m)
VOP:
75%
DC Resistance:
28.1 Ω/1000ft (92.2 Ω/1000 m)
DC Resistance Shield:
13.3 Ω/1000ft (43.6 Ω/1000 m)
Dielectric Voltage Rating:
1.5 kV RMS
Attenuation:
1 MHz — 1.0 dB/100 ft
6 Mhz — 2.0 dB/100 ft
10 MHz — 2.7 dB/100 ft
100 MHz — 7.4 dB/100 ft
