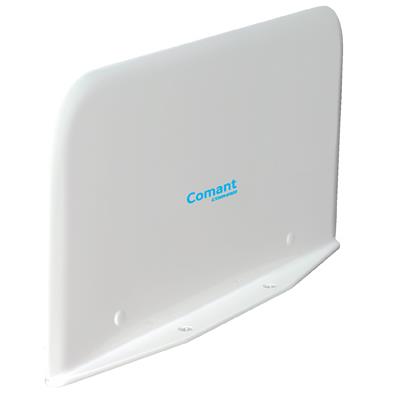

The CI 120-400 is a four-through-hole-mount style blade VOR/LOC/GS antenna pair with BNC ports that provide a single coax cable run to the avionics location. It is suitable for mounting on the aircraft vertical stabilizer on heavy fixed-wing single-engine and multi-engine aircraft.

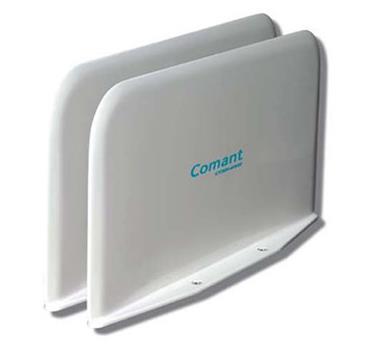

This CI 120-400 antenna set (EDMO# CI-120-400) includes two blade sensor elements each with a BNC output connector; one signal combiner to single output with BNC connectors; and coax cables.
Features
- 108–118 MHz & 329–335 MHz frequencies
- Pair of blade antennas single BNC connector output
- One coax interconnect cable
- Single output signal combiner
- For heavy fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
2.8 lb
Height:
6.5 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
6.0:1 108–118 MHz
5.0:1 329–335 MHz
Polarization:
Horizontal
Radiation Pattern:
Omni-Directional
Impedance RF:
50Ω, nominal
Power RF:
Receive Only
Finish:
Glossy White
Connector:
BNC/Single Output Combiner
Temperature:
-55°C to 85°C
Altitude:
50,000 ft
FAA TSO:
C34e, C36e, C40c
RTCA MOPS:
DO-192, DO-195, DO-196
RTCA Environmental:
DO-160D
