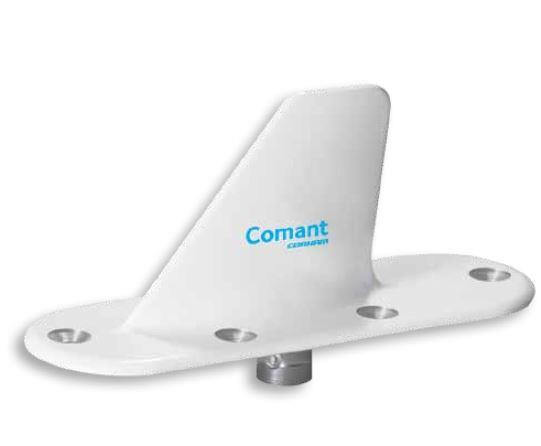

The CI 110-61-30 DME transponder blade antenna is all metal, low profile antenna is designed for business jet and commercial high speed aircraft. With a popular six hole mount and connector path to ground, this antenna is ideally suited for those aircraft equipped with Mode S transponders. In addition to standard DME, transponder, and Mode S transponder, this antenna can be used for TAS/IHAS installations. Tough, one piece construction provides 175 lbs. side load capability, guarding against breakage from ground equipment. Moisture failure is prevented with completely sealed construction.
Features
- 960–1220 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- All metal one-piece construction
- 6-hole mounting
- Completely sealed
Specifications
Weight:
0.25 lb
Height:
2.25 in
Frequency:
960–1220 MHz
VSWR:
1.5:1 maximum
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Resistance DC:
Short Circuit
Power (RF):
3.0 KW Peak / 100 watt average
Temperature:
-55ºC to +85ºC
Altitude:
55,000 ft
Certifications:
FAA TSO C66c, C74c, C112 (Class 1A), DO-160D
