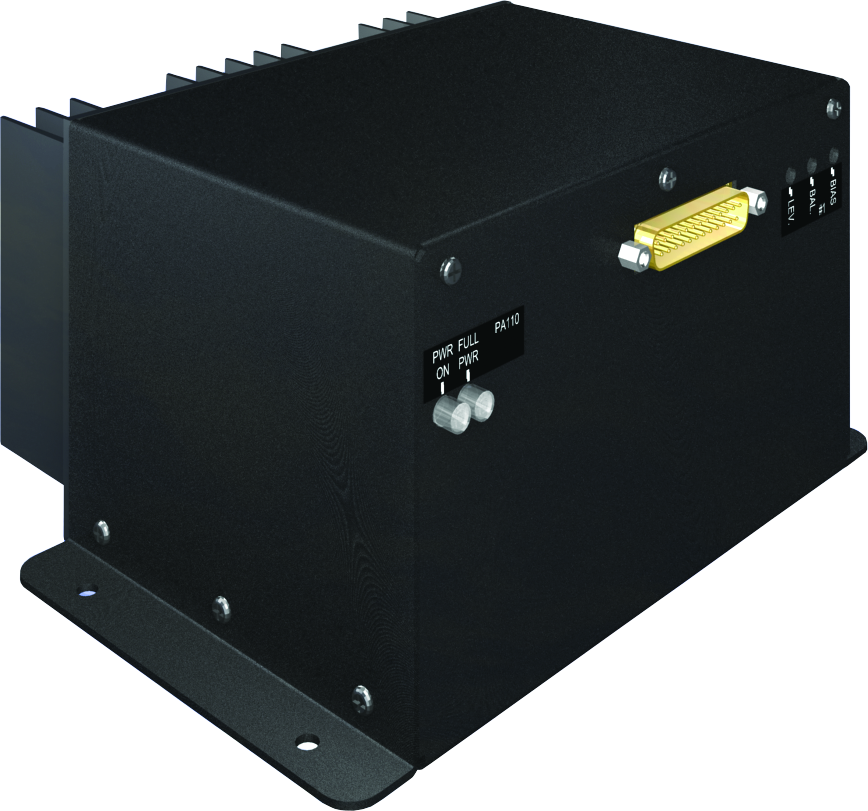

The PA110 High Power Audio Amplifiers are remote mounted modular amplifiers capable of producing 110W of power, and can be used in conjunction with Loudhailer/Siren systems. All external interconnects, switches and relay contacts are gold plated for maximum reliability. Switches and relays are sealed. G10-FR flame retardant circuit boards are post-coated for maximum moisture resistance and corrosion prevention. Relays are sealed, high vibration rated (50g shock) and dry nitrogen filled.
Features
- High and low level inputs
- Optional audio key input
- Remote power keying
- Power and level indicators
- Local and level adjustment
- Used with AA21 and AA22 controllers
Specifications
Weight:
4.6 lb
Dimensions:
7.9 x 6.32 x 4.10 in.
Power:
+28 VDC noinal at 5.5 A max
Low level input:
Impedance 600 Ω ±5%
High level input:
Impedance 300 Ω ±5%
Output:
100 W nominal @ 1kHz into 10 Ω, transformer coupled
Temperature:
-45ºC to +50ºC
Altitude:
25,000 ft
Unit of Measure: EACH
Supplier/Manufacturer SKU: PA110-015
Mil Spec, TSO, Certification:
HS Code: 8518.40.2000
HAZMAT:
UN#:
