Home Solder Sleeve, Immersion Resistant , 0.070-0.235in, 150degC

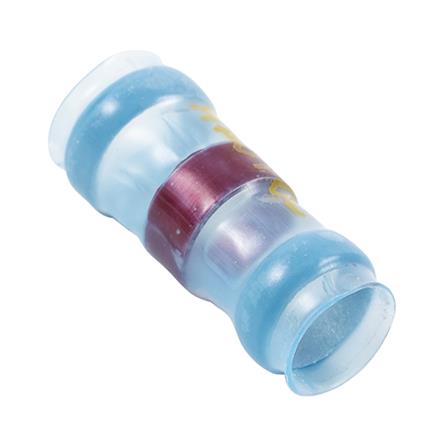

Solder Sleeve, Immersion Resistant , 0.070-0.235in, 150degC

25 in stock
Product code: S01-04-R

This S01-04-R solder sleeve terminal fits wire diameters of 0.070 � 0.235 inch (�D). No lead or braid.

$0.00
RRP: $3.60

S01 series immersion resistant solder termination sleeves (STS) provide a reliable method of terminating a wide variety of coaxial cables and screens. They can be used for wire-to-wire, wire-to-pin connections, and triaxial cable assemblies. STS are designed to solder, seal terminations, provide strain relief and are installed by the application of heat.

  • Mil-Spec. AS83519/1 Qualified
  • Immersion Resistant
  • 150°C Operating Temperature
  • 183°C Solder Melt Temperature
  • Convection or infrared heated installation
  • Sn63 (RMA flux)
Dimensions: 8.00 x 8.00 x 20.00 mm (H x W x L)
Weight: 1.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: 346656-000
Mil Spec, TSO, Certification: M83519/1-4
HS Code: 8536.90.0000
HAZMAT:
UN#:
