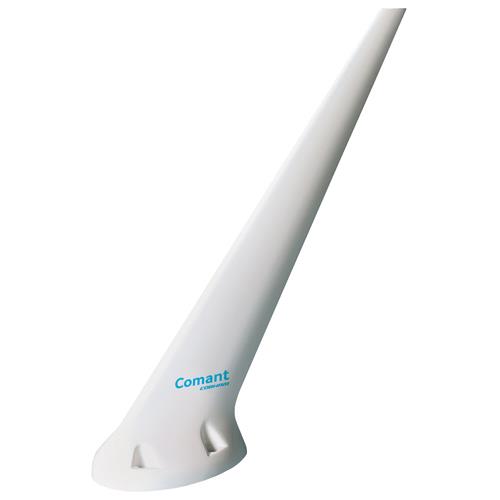

The CI 268-60 antenna is a four-through-hole-mount style VHF communication blade antenna with an offset BNC port. This antenna is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.
Features
- 118-137 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Nickel plated aluminum base plate
- Integral Nitrile O ring for pressurized applications
- Same footprint and offset connector location as CI 238
Specifications
Weight:
1.25 lb
Height:
14.1 in
Frequency:
118–137 MHz
VSWR:
2.9:1
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50Ω
Power (RF):
50 Watts
Harmonic Rejection:
80 dB typical
Material:
Molded Glass Filled Nylon
Finish:
Glossy White Polyurethane Enamel
Connector:
BNC Female
Temperature:
-55 to 85ºC
Altitude:
35,000 ft
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
Dimensions: 85.00 x 135.00 x 655.00 mm (H x W x L)
Weight: 736.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 268-60
Mil Spec, TSO, Certification: C37d, C38d, DO-160D
HS Code: 8529.10.4000
HAZMAT:
UN#:
