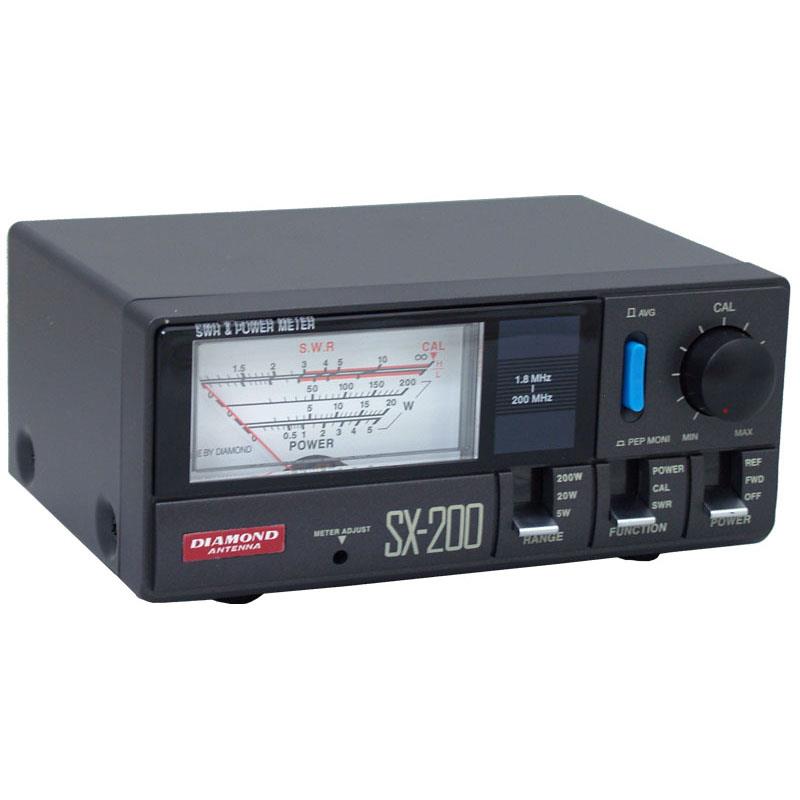

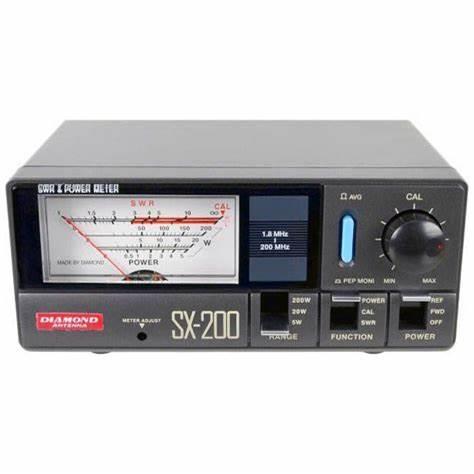

Diamond SX200 HF/VHF SWR and Power Meter

Out of stock
Product code: SX-200

The SX200 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations.

$0.00

Details

  • Frequency range: 1.8 to 200MHz
  • Power display range: 5W 20W 200W
  • Accuracy at full scale: 5W Range ±5% (F.S), 20W Range ±7.5% (F.S), 200W Range ±5% (F.S), (Add +15% of full scale at 160 to 200MHz)
  • Minimum power at SWR measurement: 1W
  • Insertion loss: Less than 0.15dB (1.8 to 3.5 MHz), Less than 0.2dB (150 to 200MHz)
  • Measurement function: Forward RF power, Reflected RF power, SWR, PEP monitor
  • Connector: PL-259 female (SO239)
  • Dimensions: 155W x 63H x 103D mm
  • Weight: 540g
  • Impedance: 50ohms

Additional Features

  • Illuminated meter
  • Switchable r.m.s. or peak power
  • Measures forward, reflected & VSWR power

12VDC power required for operation. Power cord included.
