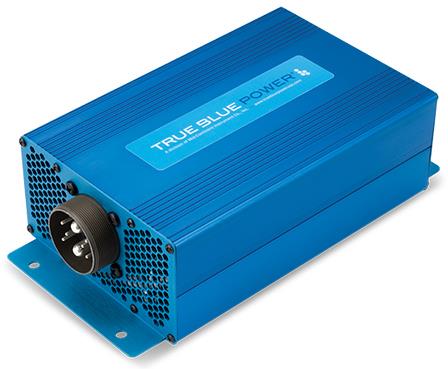

Provide 2,000 watts of 60 Hz power to cabin and galley accessories with the TI2000 inverter from True Blue Power. This inverter is capable of operating in a three-phase configuration by using three units interconnected, producing 6,000 watts of power. The unit is FAA TSO certified and offers a two-year limited warranty.
- Supplies 2,000 watts of wall outlet power
- Ideal for emergency medical equipment, special mission and VIP cabin configurations
- Lightweight — 7.7 lbs
- 93% efficient
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Input Voltage
20 – 36 VDC
Input Current
80A at 28 VDC input
Output Voltage
115 VAC ± 3%
Output Power
2,000 VA
Output Frequency
60 Hz ± 0.1%
Output Waveform
Single phase, true sine wave,
< 3% total harmonic distortion
Weight
7.7 lbs (3.49 kg)
Altitude
55,000 ft
Humidity
Tested to greater than 95% for 10 days,
temperature cycle of 75° F to 160° F
Temperature
-67°F to +158°F (-55°C to +70°C)
Integral Cooling
Dual, electronically-controlled brushless fans
Mating Connector
P/N 9018784-1
P/N 9018550-2 (cable clamp / backshell)
Case
Anodized aluminum extrusion, blue
Certification
FAA TSO-C73 certified
EASA ETSO-C73 certified
RTCA DO-160G qualified
