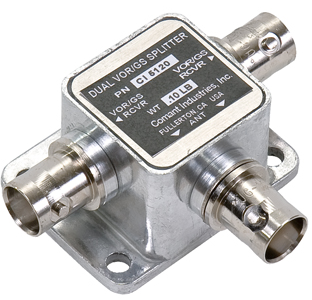

The CI 5120 VOR/LOC/GS signal splitter is a four-through-hole-mount style splitter with BNC ports. This splitter is designed for avionics units that require separate NAV signal inputs and splits a single VOR/LOC/GS signal into two separate VOR/LOC/GS signals. It is suitable for internal aircraft mounting.
Features
- 108–118 MHz & 329–335 MHz frequencies
- For interior mount location
- Designed for Garmin GNS 580
- Single input, dual output
- VOR/LOC/GS output
Specifications
Weight:
0.1 lb
Height:
0.97 in
Frequency:
108–118 MHz & 329–335 MHz
VSWR:
1.5:1
Isolation:
20 dB
Insertion Loss:
1.0 dB
Impedance:
50 Ω
Amplitude Balance:
± 50 dB
Phase:
± 5180º ± 5º
Power Split:
3 dB
Material:
Aluminum
Finish:
Aluminum
Connector:
BNC Female
Mounting Location:
Internal
Dimensions: 25.00 x 90.00 x 120.00 mm (H x W x L)
Weight: 540.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 5120
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
