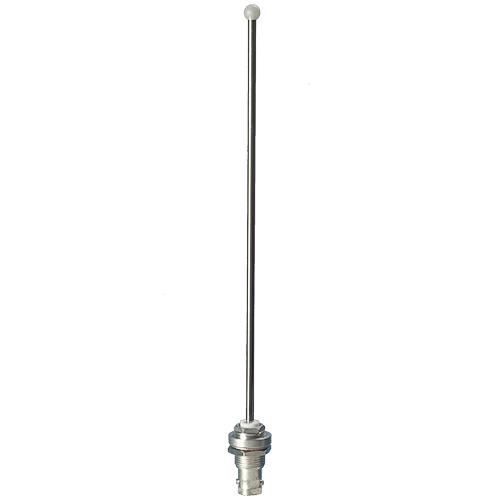

The CI 106 antenna is a single-hole-mount style stub UHF Radiotelephone Communication antenna with a BNC female connector. It is designed to support the 450–470 MHz range and is suitable for bottom mounting with light fixed-wing single-engine and multi-engine aircraft. The antenna radiator is mechanically captivated and sealed against leakage. All exposed metal surfaces are nickel-plated for corrosion resistance and long service.
Features
- BNC female connectors
- 450–470 MHz frequency range
- Rated up to 250 Knots TAS
- Designed for use on light fixed-wing single-engine and multi-engine aircraft
Specifications
Weight:
0.18 lbs
Height:
7 in
Frequency:
450–470 MHz
VSWR:
1.7:1
Polarization:
Vertical
Radiation Pattern:
Typical of 1/4 Wave
Impedance:
50 Ω
RF Power:
50 W
Speed Rating:
Up to 250 Knots TAS
Finish:
Nickel plated brass
Material:
Tin-Nickel Alloy
Connector:
BNC Female
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 106
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
