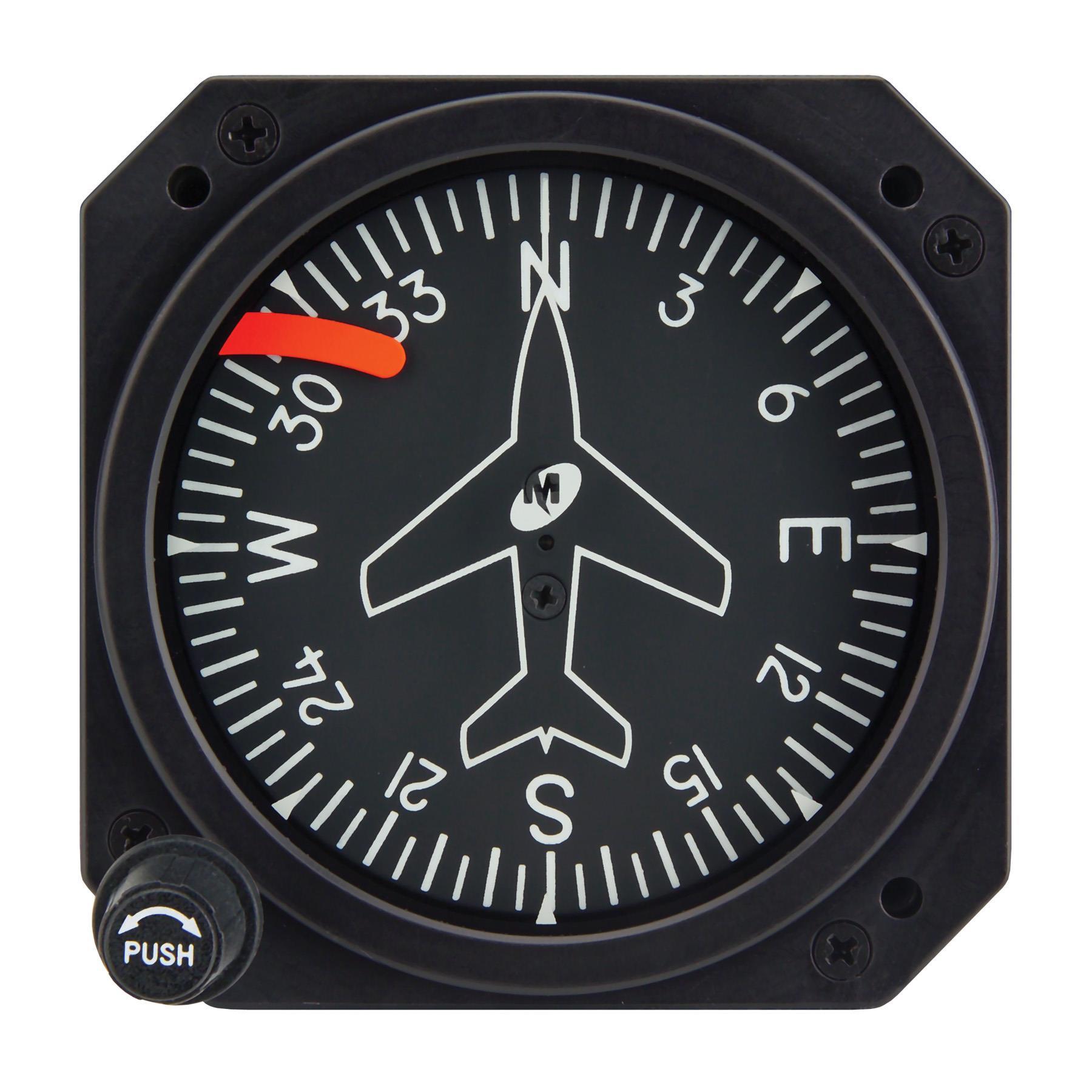

The 3300-11 Electric Directional Gyro weighs just 1.9 pounds. It features long-life LED lighting, which is user selectable to a 5, 14, or 28 volt input with adjustable brightness. The 3300 Series is a direct replacement for many AIM205 and RC Allen RCA15 units.
- Weighs just 1.9 lbs. – One pound less than most electric directional gyros
- Multi-voltage 10–32 volt DC input remains valid until the aircraft main battery discharges to 10 VDC
- Direct replacement for many AIM205 and RC Allen RCA15 units
- Designed specifically for use in high vibration applications
- Warning flag monitors rotor speed and power input
- Anti-reflective glass enhances visibility and reduces fatigue
- Worldwide support program
- Requires less than half the power of standard directional gyros
- Long-life LED lighting, user selectable to 5, 14 or 28 volt input with adjustable brightness
- FAA TSO-C5e certified and RTCA DO-160E qualified
- Exceptional RTCA DO-160E HIRF immunity
- Designed and built in Wichita, Kansas, USA
- One-year limited warranty
Specifications
Power Input
10–32 VDC
Current Rating
At 14 VDC, Start: 1.4A Max., Run: 0.44A nominal
At 28 VDC, Start: 0.6A Max., Run: 0.22A nominal
Lighting
Internal LED lighting user selectable to 5, 14 or 28 VDC input
Adjustable brightness
Weight
1.9 lbs.
Length
4.65″
MTBF
2,500 hours
Temperature Range
–40°C to +55°C (–40°F to 130°F)
Altitude
–15,000 to +50,000 feet
Connector
4-pin (MS3116E8-4P)
Mating Connector
Mid-Continent P/N 9015514 (MS3116F8-4S or equivalent)
Color
Index Marks, Text, Symbolic Airplane, Logo: White
Bezel, Dial Background: Black
Power/Rotor Speed Warning Flag: Red
Glass
Special HEA anti-reflective coating
Mounting
Rear panel mount in standard 3 1/8” round panel cutout
