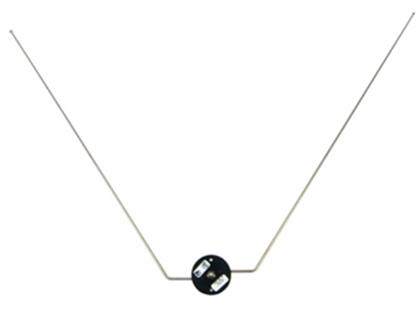

The CI 157P antenna is a two-through-hole-mount style staggered V dipole VOR/LOC/GS antenna with a BNC port. This antenna features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. It is designed with fixed staggered radiator elements and is suitable for mounting on the aircraft vertical stabilizer on light fixed-wing single-engine and multi-engine aircraft.
Features
- 108-118 MHz (VOR/LOC) & 329-335 MHz (GS) frequencies
- Horizontal polarization
- Dipole radiation pattern
- Non-removable radiating elements
- For light fixed-wing single-engine and multi-engine aircraft installations
Specifications
Weight:
0.5 lb
Height:
18 in
Frequency:
108–118 MHz (VOR/LOC)
329–335 MHz (GS)
VSWR:
3.0:1
Polarization:
Horizontal
Radiation Pattern:
Dipole
Impedance RF:
50 Ω
Power RF:
Receive Only
Temperature:
-55ºC to 85ºC
Altitude:
15,000 ft
Airspeed:
250 Knots TAS @ 25,000 ft
Certifications:
FAA TSO C34e, C36e, C40c
RTCA MOPS DO-192, DO-195, DO-196
RTCA Environmental DO-160C
