PRODUCT FEATURES
- Distance to fault accuracy of ±1% with known VOP and consistent cable parameters
- Ability to measure length on live telephone lines
- Memory storage for most used cables
- 4 different tones
- Works on energized cables

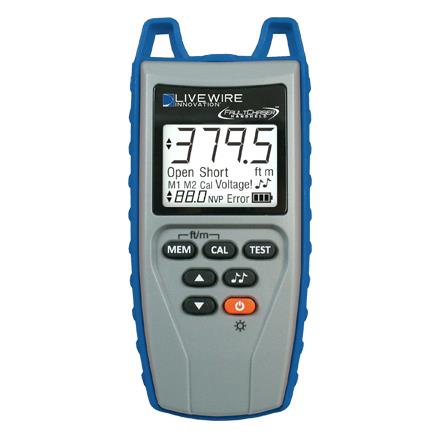

- Large backlit LCD display
- Auto power-off
PHYSICAL FEATURES
- Size: 17.3 x 8.0 x 3.3 cm (6.8 x 3.15 x 1.3 inches)
- Weight: 340 grams (12.0 oz.) With battery
| Input Protection | To 400 volts pead 50/60 Hz AC or DC |
| Voltage Warning | At maximum of Safety Extra Low Voltage limits (60V peak AC or DC) • Measurement continues while warning is displayed. |
| Measurement Method: | Spread Spectrum Time Domain Reflectometry (SSTDR) |
| NVP (VOP) Range | 20.0 to 99.9% |
| NVP Accuracy Range | ±1% with known NVP and consistent cable parameters |
| Maximum Length | 3,000 ft. on cables with low attenuation |
| Common Cable Length Ranges | • Coaxial Cable - 0 to 2,000 feet • Data Cable - 0 to 1,500 feet • Electrical Cable - 0 to 1,000 feet |
| Tone Generation: | 4 selectable tone cadences centered on 1 kHz • Constant output amplitude of 3 Vp-p |
| Power | 4 AA alkaline batteries • Standby: 4 years • Active: 15 hours average |
| Battery Low Level: | Approximately 4 volts |
| Operating Environment: | • Operating temperature: 0 to 50°C (32 to 122°F) • Storage temperature: -20 to 60°C (-4 to 140°F) • Humidity: 10% to 90%, non-condensing • Altitude: 3,050 meters (10,000ft) maximum |
| Compliance | Complies with Conformité Européenne directives. |
