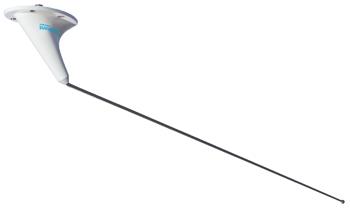

The CI 222 antenna is a four-through-hole-mount style AM/FM receive-only bare bent antenna with a BNC port. This antenna is designed for listening to AM/FM broadcasts and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.
Features
- 88–108 MHz and 540–1600 kHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- 4-hole mounting
- BNC female connector
Specifications
Weight:
0.50 lb
Height:
5.5 in
Whip Length:
20.5 in
Frequency:
88–108 MHz
540–1600 MHz
VSWR:
3.5:1 @ 98 MHz (Mid-band)
30:1 @ 88 & 108 MHz (Edges)
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance (RF):
50 Ω
Resistance DC:
Open Circuit
Power (RF):
50 W
Material:
Cast Zinc Housing/Stainless Whip
Finish:
Glossy White
Connector:
BNC Female
Temperature:
-55ºC to 85ºC
Mounting Configuration:
4 Hole
FAA TSO:
C37d, C38d
Gasket:
B12607-3
Dimensions: 85.00 x 135.00 x 660.00 mm (H x W x L)
Weight: 550.00 g
Unit of Measure: EACH
Supplier/Manufacturer SKU: CI 222
Mil Spec, TSO, Certification:
HS Code: 8529.10.4000
HAZMAT:
UN#:
