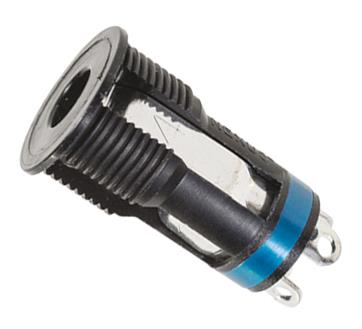

The TJT-102 threaded telephone jack is a front panel-mounted jack with four contacts. Mates with Nexus series TP-120 and TP-102 plugs.
- Panel-mounted version of the TJ-102 jack
- Mates with Nexus series TP-120 and TP-102 plugs
- Includes: TJT-120-3 11/16 internal tooth lock washer, TJT-120-2 11/16 nut
Specifications
Dimensions: 0.719 x 0.719 x 1.391 in
Number of Contacts: 4
Contact Diameter: 0.285 in
Shell Diameter: plastic
Contact Material: nickel-plated, beryllium copper
Thread: 11/16-24 UNEF-2A
Standard: MIL-C-9177
Solder Contact Terminals: pre-tinned over nickel plating
Contact Resistance: ≤0.02 Ω
Insulation Resistance: ≥1,000 mΩ
Dielectric Withholding Voltage: ≥500 V RMS
Insertion Force: 13 lb, maximum
Withdrawal Force: 6 to 10 lb
Unit of Measure: EACH
Supplier/Manufacturer SKU: TJT-102
Mil Spec, TSO, Certification: M9177/4-1 / MIL-C-9177
HS Code: 8536.69.4020
